Drip and Bubbler Products

Landing-Page-Drip-and-BubblerDrip Irrigation and Bubbler Supplies

Drip irrigation systems are the most water-efficient method of irrigation since water is delivered at or near the root of plants and there is less chance of water run-off than with sprinkler irrigation systems. At Sierra Irrigation, we supply a wide range of drip irrigation products from top brands in the industry to provide you with an array of choices to meet all of your irrigation needs.

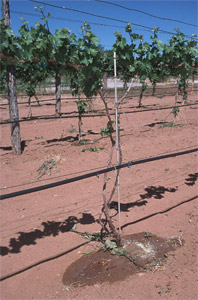

Drip-Irrication-System

Drip irrigation allows water to drip slowly to the root system of a plant. The drip can be directed to the soil surface or to the root zone. This latter process is done through a system of emitters, pipes, narrow tubing, and valves that direct water to the base of a plant or plants.

Compare to other irrigation system types, when a drip system is properly installed, it can help in the effort of water conservation. It does this by lowering water evaporation and drainage.

An emitter is also refered to as a dripper and is utilized to move water from a pipe or a tube to the irrigation area.  The typical emitter flow rates are from 0.16 to 4.0 U.S. gallons per hour (GPH) (0.6 to 16 L/h).

Emitter

Another feature of the drip system is the emitting pipe. These pipes or tubes have emitters pre-installed within the factory. They are designed and manufactured with a specific distance and flow per hour engineered into them. In most emmiters, water flow will vary with the pressure. Some emmiters are designed to compensate for variances in water pressure and are referred to as pressure compensating emmiters.



Advantages of Drip Irrigation

• Conservation of water is a big feature of a drip irrigation system as it directly targets a plants root zone area

• The low flow rate can allow irrigation of a larger area and more plants can be watered at the same time

• Plants will experience less stress from a variation in soil moisture

• The slow irrigation rate will prevent an excess of water build-up on the surface

• A drip irrigation system is extremely flexible. It can be designed for any type of soil condition and different kinds of terrains




  • 4 GPH Flag Emitter 4 GPH Flag Emitter

    4 GPH Flag Emitter

    The commercial greade 4 GPH Flag Emitter is ideal for short runs and non-sloped areas. It can function over a wide range of pressures. It will provide a consistent and even flow irrigation regardless of fluctuation due to variations in landscape grade and surfaces. A barbed inlet allows installation directly onto polyethylene hose or with ¼” (6 mm) leader tubing. It features a large open flow path for resistance to plugging. The 4 GPH Flag Emitter has a convenient take-apart feature that allows fast and simple field inspection. This emitter is also designed for individual watering of trees and shrubs. The 4 GPH Flag Emitter is resistant to clogging and, due to its design, is very easy to install.

    More ...
  • Sale!6 Outlet Manifold-EMT-6XERI 6 Outlet Manifold-EMT-6XERI

    $4.05 $2.43

    6 Outlet Manifold-EMT-6XERI, Features & Benefits

    The 6 Outlet Manifold- EMT-6XERI, from Rain Bird, has a 1/2″ (15/21) FPT inlet that threads onto 1/2″ riser and provides a manifold with six free-flowing 1/4″ barb outlets. Each barb outlet is sealed with a durable plastic cap. Plastic caps remove easily, allowing for a drip area that can be customized with up to six different emission devices. The 6 Outlet Manifold-EMT-6XERI can be used with the EMT-6XERI with Xeri- Bugs, PC Modules, Xeri-Pops, Xeri-Sprays, and Xeri-Bubbler. The operating range pressure is 15 to 50 psi (1,0 to 3,5 bars).



    Rain Bird Warranty

    More ...
  • Sale!5-CST-B Hunter 5-CST-B

    $2.00 $0.85

    Hunter 5-CST-B Bubbler Nozzler, 5′ Stream Coverage

    The Hunter 5-CST-B has the ability to compensate for pressure differences. Output of water to remain constant regardless of the input pressure. As a result, this allows for accurate application never before achieved in bubblers. The same holds true with the MSBN and 5-CST-B nozzles, which are designed for deep watering of large planted areas.  With easy installation and the ultimate in reliability of the Hunter 5-CST-B, now every plant, shrub, or tree can receive the same amount of water required with no excess runoff or waste.

    Hunter Warranty

    More ...
  • Sale!Hunter PCB-50 Pressure Compensating Bubbler Hunter PCB-10 Pressure Compensating Bubbler

    $5.40 $2.50

    Hunter PCB-10 Pressure Compensating Bubbler Pattern – Umbrella, Flow – 1.00

    Hunter bubblers keep the output of water constant regard of pressure, for accurate, easy application.
    With the ability to compensate for pressure differences, the Hunter PCB-10 Pressure Compensating Bubbler allows for the output of water to remain constant regardless of the input pressure. This allows for accurate application never before achieved in bubblers. The same holds true with the MSBN and 5-CST-B nozzles, designed for deep watering of larger planted areas. While the PCB is a fixed above-ground water emitter, the PCN is compatible with the Pro-Spray spray bodies, and sinks into the ground the same way a pop-up would. With easy installation of the Hunter PCB-10 Pressure Compensating Bubbler, and the ultimate in reliability, now every plant, shrub, or tree can receive the same amount of water required with no excess runoff or waste.

    Hunter Warranty

    More ...
  • Sale!Hunter PCB-50 Pressure Compensating Bubbler Hunter PCB-20 Pressure Compensating Bubbler

    $5.40 $2.50

    Hunter PCB-20 Pressure Compensating Bubbler, Pattern – Umbrella, Flow – 2.00

    Hunter bubblers keep the output of water constant regard of pressure, for accurate, easy application.
    With the ability to compensate for pressure differences, the Hunter PCB-20 Pressure Compensating Bubbler allows for the output of water to remain constant regardless of the input pressure. This allows for accurate application never before achieved in bubblers. The same holds true with the MSBN and 5-CST-B nozzles, designed for deep watering of larger planted areas. While the PCB is a fixed above-ground water emitter, the PCN is compatible with the Pro-Spray spray bodies, and sinks into the ground the same way a pop-up would. With easy installation of the Hunter PCB-20 Pressure Compensating Bubbler, and the ultimate in reliability, now every plant, shrub, or tree can receive the same amount of water required with no excess runoff or waste.

    Hunter Warranty

    More ...
  • Sale!Hunter PCB-50 Pressure Compensating Bubbler Hunter PCB-25 Pressure Compensating Bubbler

    $5.40 $2.51

    Hunter PCB-25 Pressure Compensating Bubbler, Pattern – Trickle, Flow – 0.25

    Hunter bubblers keep the output of water constant regard of pressure, for accurate, easy application.
    With the ability to compensate for pressure differences, the Hunter PCB-25 Pressure Compensating Bubbler allows the output of water to remain constant regardless of the input pressure. This allows for accurate application never before achieved in bubblers. The same holds true with the MSBN and 5-CST-B nozzles, designed for deep watering of larger planted areas. While the PCB is a fixed above-ground water emitter, the PCN is compatible with the Pro-Spray spray bodies, and sinks into the ground the same way a pop-up would. With easy installation of the Hunter PCB-25 Pressure Compensating Bubbler, and the ultimate in reliability, now every plant, shrub, or tree can receive the same amount of water required with no excess runoff or waste.

    Hunter Warranty

    More ...
  • Sale!Hunter PCB-50 Pressure Compensating Bubbler Hunter PCB-50 Pressure Compensating Bubbler

    $5.40 $2.50

    Hunter PCB-50 Pressure Compensating Bubbler, Pattern – Trickle, Flow – 0.50

    Hunter bubblers keep the output of water constant regard of pressure, for accurate, easy application.
    WWith the ability to compensate for pressure differences, the Hunter PCB-50 Pressure Compensating Bubbler allows for the output of water to remain constant regardless of the input pressure. This allows for accurate application never before achieved in bubblers. The same holds true with the MSBN and 5-CST-B nozzles, designed for deep watering of larger planted areas. While the PCB is a fixed above-ground water emitter, the PCN is compatible with the Pro-Spray spray bodies, and sinks into the ground the same way a pop-up would. With easy installation of the Hunter PCB-50 Pressure Compensating Bubbler, and the ultimate in reliability, now every plant, shrub, or tree can receive the same amount of water required with no excess runoff or waste.

    Hunter Warranty

    More ...
  • Sale!Hunter PCN-10 Pressure Concentrating Nozzle Hunter PCN-10 Pressure Concentrating Nozzle

    $2.70 $1.18

    Hunter PCN-10 Pressure Concentrating Nozzle, Bubbler Pattern – Umbrella, Flow 1.00 GPM

    Hunter bubblers keep the output of water constant regard of pressure, for accurate, easy application.
    With the ability to compensate for pressure differences, the Hunter PCN-10 Pressure Concentrating Nozzle allow the output of water to remain constant regardless of the input pressure. This allows for accurate application never before achieved in bubblers. The same holds true with the MSBN and 5-CST-B nozzles, designed for deep watering of larger planted areas. While the PCB is a fixed above-ground water emitter, the PCN is compatible with the Pro-Spray spray bodies, and sinks into the ground the same way a pop-up would. With easy installation of the Hunter PCN-10 Pressure Concentrating Nozzle, and the ultimate in reliability, now every plant, shrub, or tree can receive the same amount of water required with no excess runoff or waste.

    Hunter Warranty

    More ...
  • Sale!Hunter PCN-20 Pressure Concentrating Nozzle Hunter PCN-20 Pressure Concentrating Nozzle

    $2.70 $1.21

    Hunter PCN-20 Pressure Concentrating Nozzle, Bubbler Pattern – Umbrella, Flow 2.00 GPM

    Hunter bubblers keep the output of water constant regard of pressure, for accurate, easy application.
    With the ability to compensate for pressure differences, the Hunter PCN-20 Pressure Concentrating Nozzle allows the output of water to remain constant regardless of the input pressure. This allows for accurate application never before achieved in bubblers. The same holds true with the MSBN and 5-CST-B nozzles, designed for deep watering of larger planted areas. While the PCB is a fixed above-ground water emitter, the PCN is compatible with the Pro-Spray spray bodies, and sinks into the ground the same way a pop-up would. With easy installation of the Hunter PCN-20 Pressure Concentrating Nozzle, and the ultimate in reliability, now every plant, shrub, or tree can receive the same amount of water required with no excess runoff or waste.

    Hunter Warranty



    More ...
  • Sale!Pressure Concentrating Nozzle Hunter PCN-25 Pressure Concentrating Nozzle

    $2.70 $1.18

    Hunter PCN-25 Pressure Concentrating Nozzle, Bubbler Pattern – Trickle, Flow 0.25 GPM

    Hunter bubblers keep the output of water constant regard of pressure, for accurate, easy application.
    With the ability to compensate for pressure differences, the Hunter PCN-25 Pressure Concentrating Nozzle allows the output of water to remain constant regardless of the input pressure. This allows for accurate application never before achieved in bubblers. The same holds true with the MSBN and 5-CST-B nozzles, designed for deep watering of larger planted areas. While the PCB is a fixed above-ground water emitter, the PCN is compatible with the Pro-Spray spray bodies, and sinks into the ground the same way a pop-up would. With easy installation of the Hunter PCN-25 Pressure Concentrating Nozzle, and the ultimate in reliability, now every plant, shrub, or tree can receive the same amount of water required with no excess runoff or waste.

    Hunter Warranty

    More ...
  • Sale!Hunter PCN-50 Pressure Concentrating Nozzle Hunter PCN-50 Pressure Concentrating Nozzle

    $2.70 $1.18

    Hunter PCN-50 Pressure Concentrating Nozzle – Bubbler Pattern – Trickle, Flow 0.50 GPM

    Hunter bubblers keep the output of water constant regard of pressure, for accurate, easy application.
    With the ability to compensate for pressure differences, the Hunter PCN-50 Pressure Concentrating Nozzle allows the output of water to remain constant regardless of the input pressure. This allows for accurate application never before achieved in bubblers. The same holds true with the MSBN and 5-CST-B nozzles, designed for deep watering of larger planted areas. While the PCB is a fixed above-ground water emitter, the PCN is compatible with the Pro-Spray spray bodies, and sinks into the ground the same way a pop-up would. With easy installation of the Hunter PCN-50 Pressure Concentrating Nozzle, and the ultimate in reliability, now every plant, shrub, or tree can receive the same amount of water required with no excess runoff or waste.

    More ...
  • Sale!Inline WYE Drip Irrigation Filter-3/4 inch Inline WYE Drip Irrigation Filter-3/4 inch

    $18.75 $10.49

    Inline WYE Drip Irrigation Filter-3/4 inch, with Male x Male Threads

    This Inline WYE Drip Irrigation Filter-3/4 inch for use in control zones on drip systems is now available with male x male threads. The new threads allow easier installation and eliminate the need for schedule 80 nipples in the control zones This saves time and money on every system. The cap has a sealing o-ring and unthreads to provide access to filter element for easy cleaning. Glass-filled nylon construction provides 150 psi pressure rating through MPT connections. Replacement filter elements for the Inline WYE Drip Irrigation Filter-3/4 inch are available in three configurations: 200-mesh (75-micron); 150-mesh (100-micron) and 100-mesh (150-micron) models.

    Flow

    • 3/4″ WYE Filter : 0.2 to 12 GPM (0,01 to 0,76 l/s)

    • 1″ WYE Filter: 0.2 to 18 GPM (0,01 to 1,14 l/s)

    • Pressure: 20 to 150 psi (0,7 to 10,3 bar)

    • Filtration: 200 mesh (75 micron)

    More ...
