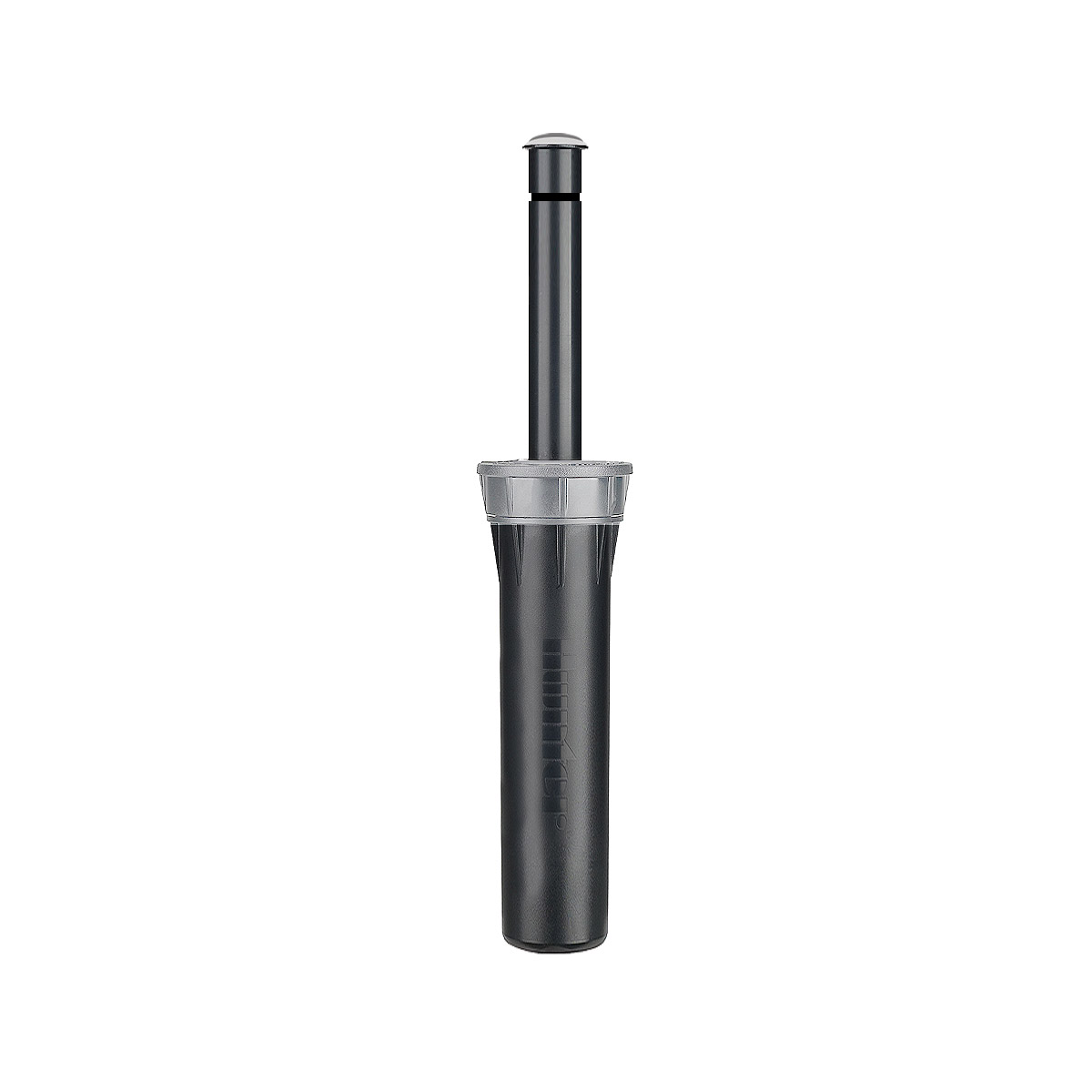

Hunter PROS-04-PRS-40-CV, 4″ Pop-up Body, Pro-Spray Sprinkler with Check Valve

Shop for nozzles.

The Hunter PROS-04-PRS-40-CV uses multi-stream technology to deliver accurate streams of water with superior uniformity. When used in place of standard spray nozzles, it’s not uncommon to see system water use decrease by up to 30% or more. This technology and water savings is brought to life in the PRS40. This efficient watering tool combines the rugged Pro-Spray body and replaces the traditional nozzle with a MP Rotator. Regulated at 40PSI, the Pro-Spray PRS40 ensures the optimum output pressure to achieve maximum efficiency. It is recommended for both residential and commercial applications, and is available in an array of configurations to suit the needs of any site.

• Factory-installed check valve option
• Field-installed check valve option
• Reclaimed water
• Residential/Commercial
• Shrubs-sprinklers on risers
• Shrubs-tall pop-up sprinklers
• Turfgrass
• Turfgrass-tall mowing height

• 6″ and 12″ models come standard as no side inlet ensuring proper installation with Check Valve.
• Drain check valve installed (14 ft. of elevation)
• Identification cap is gray for easy field ID
• Innovative directional flush plug design
• Models: Shrub, 4″, 6″, 12″
Co-molded wiper seal

• Recommended pressure range: 15 to 100 PSI
• Overall Height: 5-7/8″
• Pop-up Height: 4″
• Exposed Diameter: 2¼”
• Inlet Size: ½” female NPT


Warranty period: 5 years
