Description

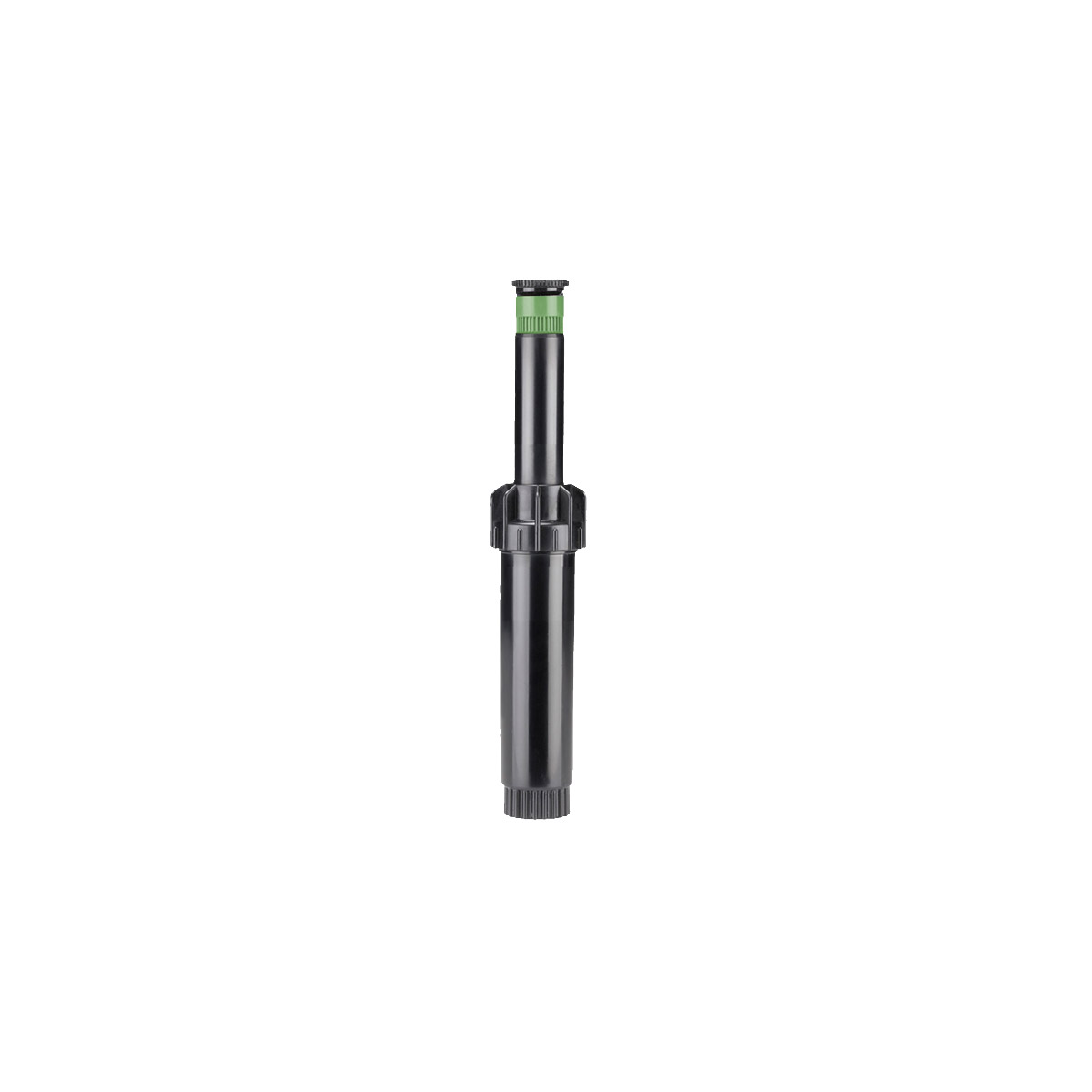

Hunter PSU-02-17A, 2″ Pop-up Body, PS-Ultra Sprinkler, Radius 17′

The Hunter PSU-02-17A features a fast, precise set-up. Adjusts easily to fit unique landscapes. This is one sprinkler that offers hundreds of solutions. Here’s the one sprinkler to carry when you want to carry just one. With its adjustable arc that creates arc patterns from 1 to 360 degrees, you’ll find there’s no need to stock hundreds of odd-pattern nozzles. Simply select and set the exact arc you need with the easy-to-use Hunter adjustment wrench, and you’ll keep water precisely where you want it and off buildings and hardscapes. No other spray sprinkler with a single nozzle is this versatile! Or as dirt tolerant-the factory-installed extra-large filter screen traps the maximum amount of debris without interrupting flow and is easily removed for cleaning. Fast and easy to set up, the Hunter PSU-02-17A is designed to fit your budget as effortlessly as it fits your landscape.

• Field-installed check valve option
• Residential
• Shrubs-sprinklers on risers
• Turfgrass

• 2″ and 4″ models can retro-fit into older style PS sprays
• Available with flush plug (large filter screen not included)
• Enhanced cap for more durability, easier handling, and extended riser seal life
• Extra large filter screen
• Flow rate: 0.2 to 5.6 GPM
• Male threaded riser to accept all female nozzles • Models: 2″, 4″, 6″
• Nozzle choices: 5
• Nozzle choices: 10A, 12A, 15A, 17A, 5′ x 30′ side strip (side strip pattern available on 2″ and 4″ models only)
• Preinstalled Pro Adjustable nozzle
• Two-piece ratcheting riser

• Flow rate: 0.2 to 5.6 GPM
• PSI Precipitation rates: 1.6 to 1.9 in/hr approx.
• Radius: 9′ to 19′
• Recommended pressure range: 20 to 70
• Exposed Diameter: 1¼”
• Inlet Size: ½”
• Overall Height: 5″
• Pop-up Height: 2″

Brochure
Instructions

Warranty period: 2 years
