Hunter I-25-04

$61.00 $30.69

Description

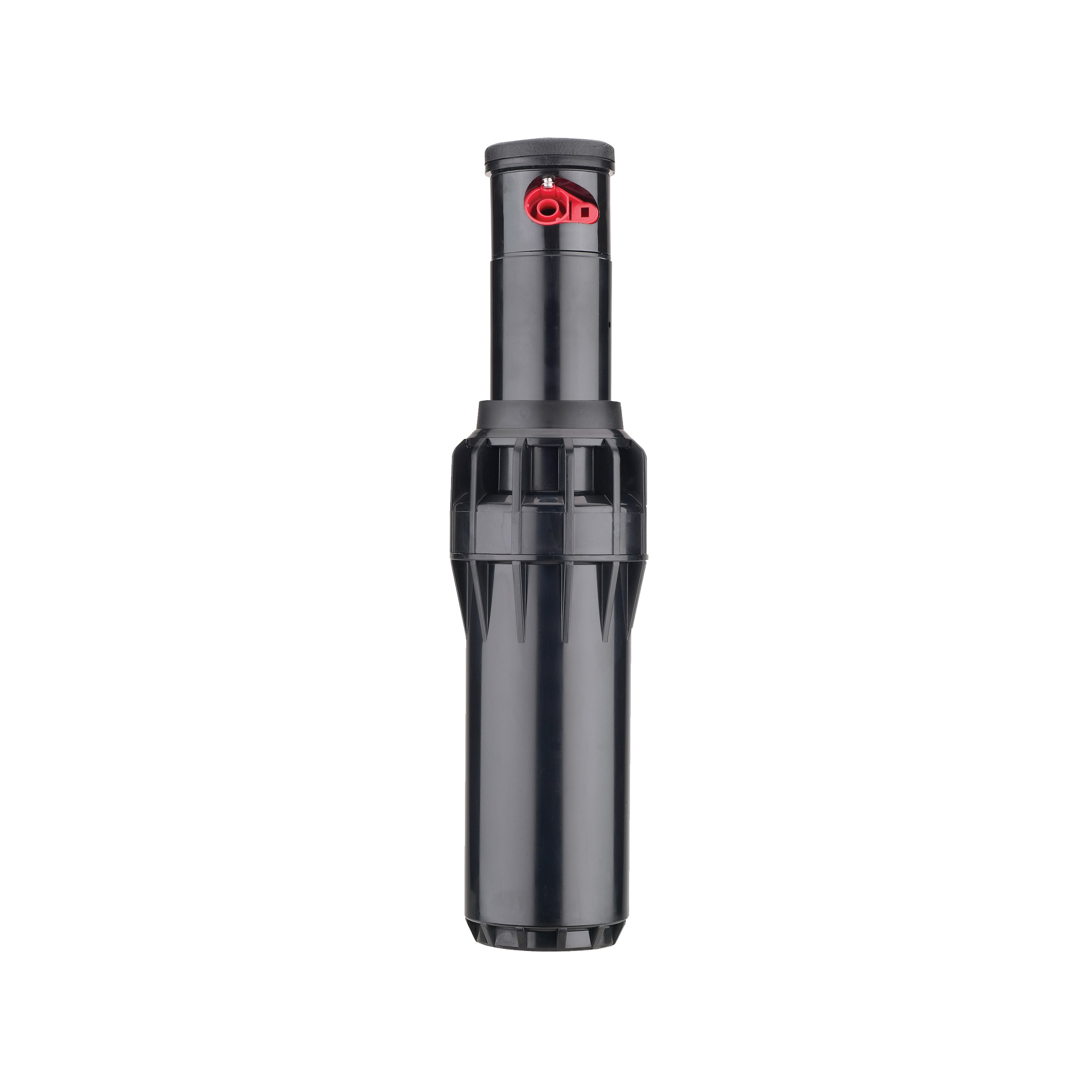

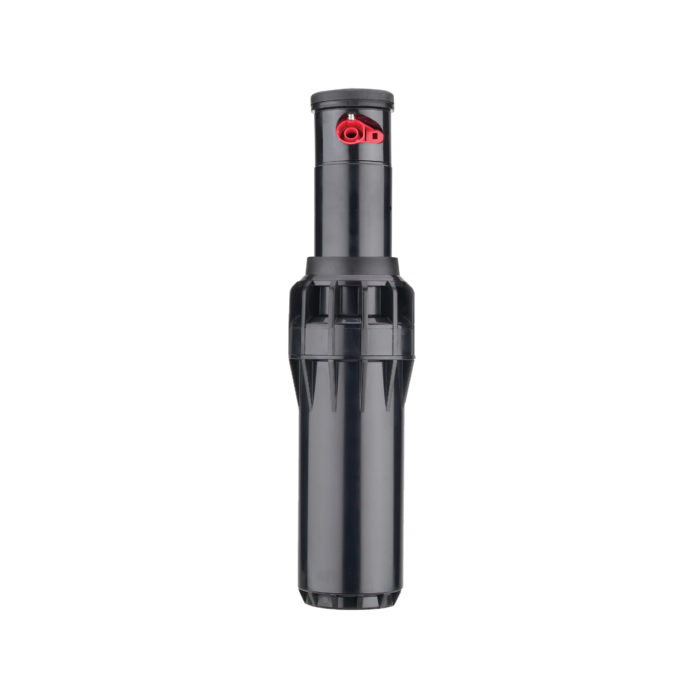

Hunter I-25-04, 4″ Pop-up Sprinkler

For durability, performance and economy on medium to large area sites, no other rotor brings it all together like the Hunter I-25-04. A ribbed body and cap for better grip. An extra-thick heavy-duty rubber cover. The industry’s smallest exposed surface area in its category. This rotor has five nozzles standard with an option of one dozen nozzles to provide optimum performance in both primary and secondary coverage. The patented VStat self-adjusting stator. Compact, extra-beefy construction. Plus, an optional stainless steel riser for even more toughness. The I-25-04 has plenty to offer at quite an attractive price. No wonder it’s the pick of so many people for so many jobs.

• Radius: 37′ to 71′
• Flow rate: 3.8 to 31.5 GP
• Recommended pressure range: 40 to 100 PSI
• Operating pressure range: 40 to 100 PSI
• Precipitation rates: 0.4 in/hr approx.
• Nozzle trajectory: 25 degrees

• Athletic Fields
• Commercial
• Ground Cover
• High Vandalism Areas
• Municipalities
• Reclaimed Water-If needed add to comments in your order
• Residential Riser-Mounted Sprinklers
• Shrubs

• Arc setting: 50 to 360 degrees
• Factory installed rubber cover
• Models plastic riser: 4″, 6″
• Models stainless riser: 4″, 6″
• Nozzle choices: 12 Nozzle range: #4 to #28
• Quick check arc mechanism
• Through-the-top arc adjustment
• Water lubricated gear-drive
• Automatic Arc Return
• Color coded nozzles
• Drain Check Valve (up to 10 ft. of elevation)
• Non-Strippable Drive
• Optional Reclaimed Water ID
• Specs

• Flow rate: 3.8 to 31.5 GPM
• Nozzle trajectory: 25 degrees
• Operating pressure range: 40 to 100 PSI
• Precipitation rates: 0.4 in/hr approx
• Recommended pressure range: 40 to 100 PSI
• Exposed diameter: 1 1/4″
• Inlet size: 1″
• Overall height: 7 7/8″
• Pop-up height: 4″

Brochure
Details

Warranty period: 5 years

Additional information

Weight 0.9574 lbs
