Description

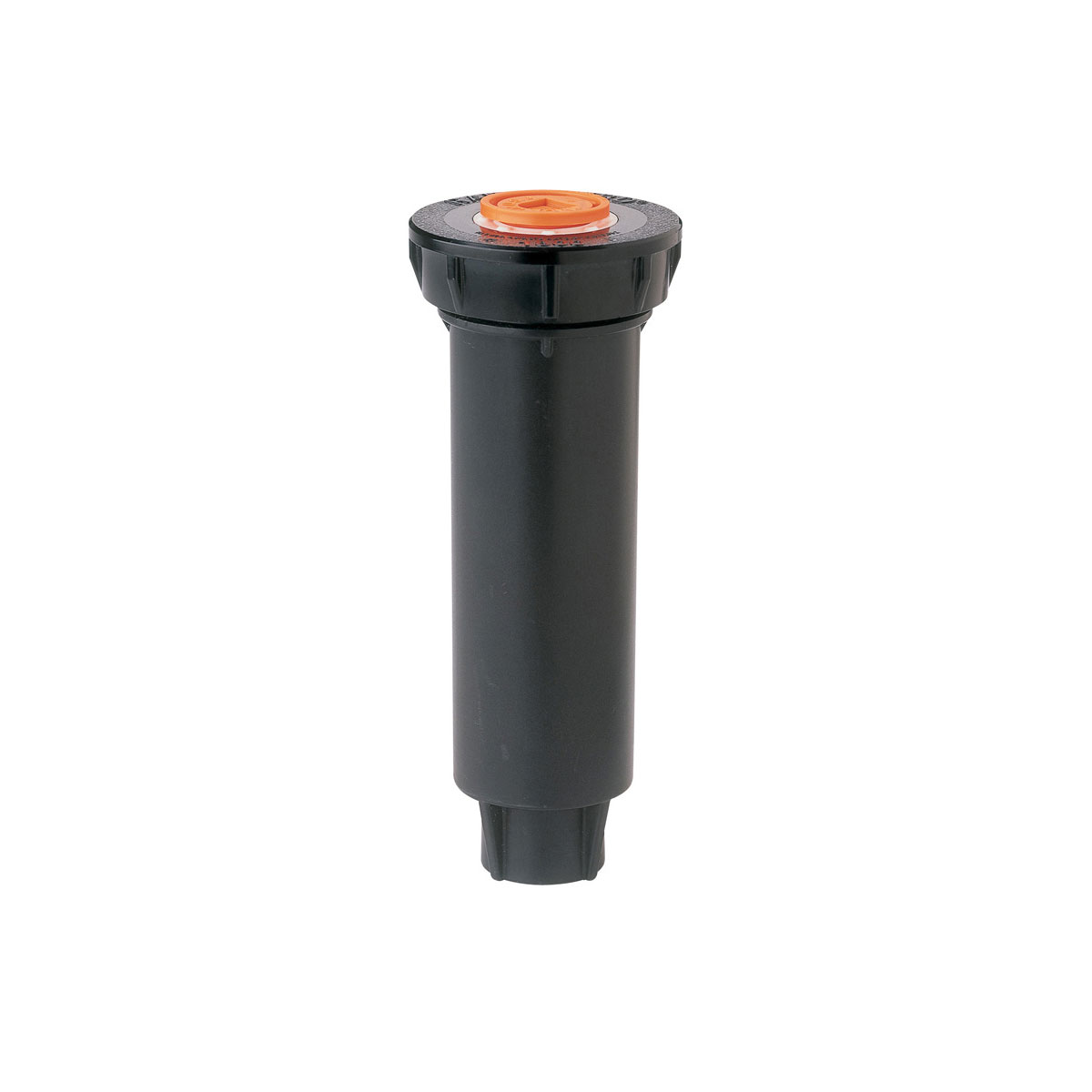

Rain Bird 1804, 4″ Pop-up Spray Head (Less Nozzle)

The Rain Bird 1804 Spray Head has first-rate quality built in for reliable operation and long life. Their superior components and features make them the spray heads of choice for a wide variety of applications. Also available with Seal-A-Matic (SAM) in-stem check valve option and patented PRS in-stem pressure regulator option. As the next evolution in spray heads from Rain Bird—the industry leader in sprays—RD 1800 was built with exclusive materials and features that stand up to the challenges of any setting (see Features tab below for more information about what sets the RD 1800 apart).

• 3 to 18 feet with standard Rain Bird Spray Head Nozzles (MPR, VAN, U-Series). 13 to 24 feet with Rain Bird Rotary Nozzles
• 1806 and 1812-SAM and SAM-PRS units do not have a side inlet
• Flow-by: 0 at 8 psi (0.6 bar) or greater; 0.10 gpm (0.02 m3/h; 0.36 l/m otherwise
• Installation: side or bottom inlet
• Pressure: 25 to 70 psi (1.7 to 4.8 bar)
• Side inlet installation not recommended in freezing climates
• Spacing: 2.5 to 24 feet (0.8 to 7.3m)

Dimensions
• 1/2″ (15/21) NPT female threaded inlets

Body height
• 1812: 16″ (40,6 cm) body height; 12″ pop-up height (30.5 cm)
• Exposed surface diameter: 2 1/4″ (5.7 cm)

• All sprinkler components are removable from the top without special tools, providing for quick and easy flushing and maintenance of the sprinkler
• Constructed of time-proven UV-resistant plastic and corrosion resistant stainless steel parts, assuring long product life
• Exclusive co-molded wiper seal features an encased plastic “cage” to provide unmatched resistance to grit, pressure and the environment.
• Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types
• Pre-installed orange 1800 Pop-Top™ flush plug blocks debris from entering after flushing
• Allows for easy nozzle installation Side and bottom inlets featured on 1806 and 1812 models
• Strong stainless steel spring provides reliable stem retraction
• The pressure-activated, multi-function seal design assures a positive seal without excess “flow-by” which enables more heads to be installed on the same valve
• Two piece ratchet mechanism on all models allows easy nozzle pattern alignment without tools and provides added durability

Brochure
Installation
Details

Warranty period: 5 years
