Description

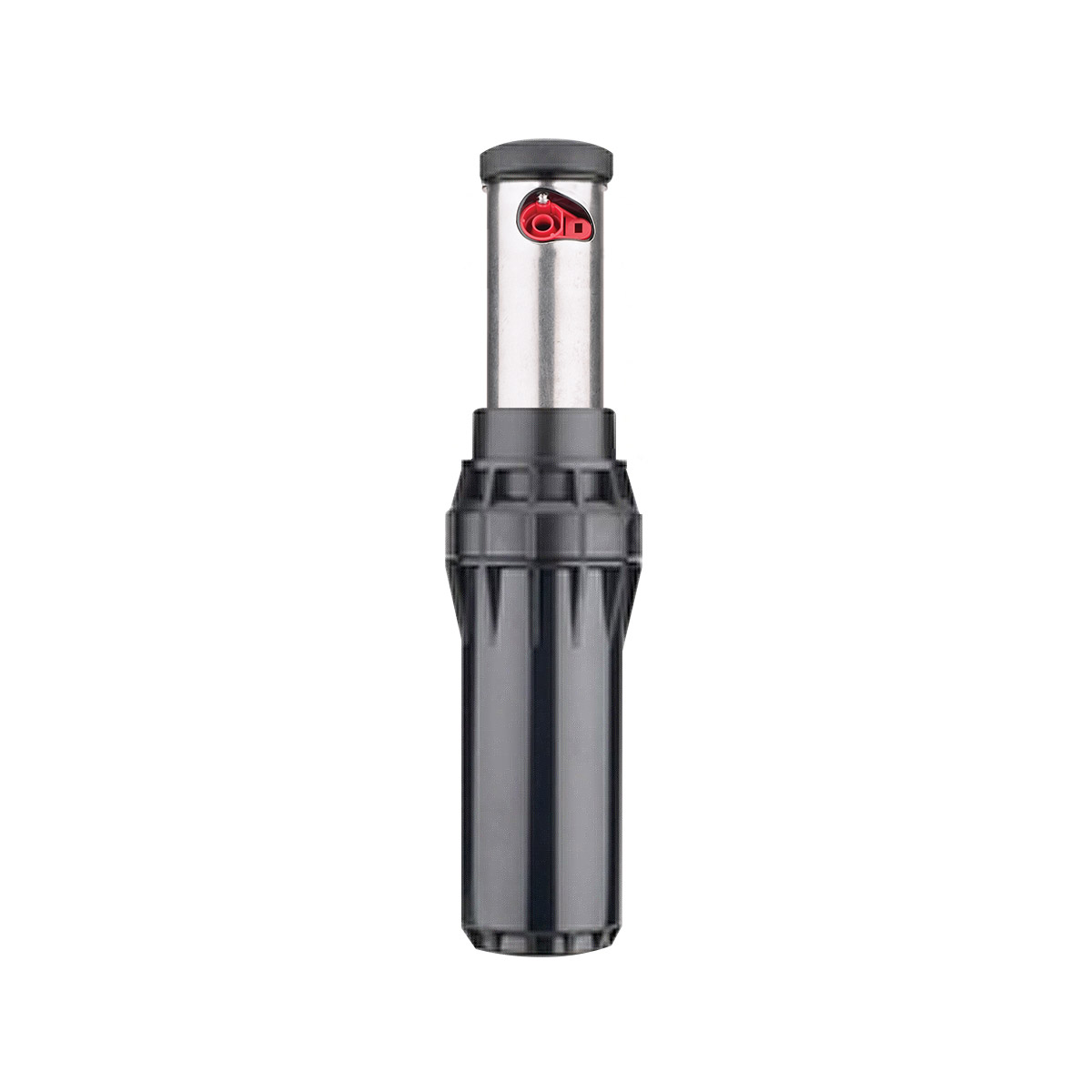

Hunter I-40-04-SS, 4″ Stainless Steel Riser, Pop-up Sprinkler

The Hunter I-40-04-SS is a tough and powerful commercial sprinkler rotor that can shoot water at a distance up to 70 feet. To prevent injury it has a thick rubber cover. Because of its durability and high power precision this sprinkler is used primarily in stadiums, public parks, and commercial environments. An attractive design, and built to last, the Hunter I-40-04 SS is the professional’s choice for ultimate performance, effective irrigation, and beautiful results.

There is nothing better that stainless steel. Are you dealing with unpredictable soil conditions, tough climates or heavy foot traffic? This solid riser can handle it all. Stainless steel risers are standard on I-40 rotors, and as an option on the 1-20-04, I-20-06, the 1-25-04, and the I-25-06. Take a Hunter rotor, add a stainless steel riser, and you’ve got lasting muscle for your irrigation.

  • Overall height: 7 7/8″”
  • Pop-up height: 4″
  • Exposed diameter: 2″
  • Inlet size: 1″ NPT
  • Radius: 37′ to 71′
  • Flow rate: 3.8 to 31.5 GPM
  • Recommended pressure range: 40 to 100 PSI
  • Operating pressure range: 40 to 100 PSI
  • Precipitation rates: 0.4 in/hr approx.
  • Nozzle trajectory: 25 degrees

• Athletic fields
• Commercial/Municipalities
• High vandalism areas
• Reclaimed water

• Arc setting: 50 to 360 degrees
• Factory installed rubber cover
• Models stainless riser: 4″, 6″
• Nozzle choices: 12 Save
• Nozzle ranges I-40: #8 to #25
• Nozzle ranges I-40-ON: #15 to #28
• Quick check arc mechanism
• Through-the-top arc adjustment
• Water lubricated gear-drive
• Automatic Arc Return
• Color Coded Nozzles
• Drain Check Valve (up to 10 ft. of elevation)
• Non-Strippable Drive
• Opposing Nozzle 360˚ Model
• Optional Reclaimed Water ID
• Part- and Full-Circle in One Model
• Stainless Steel Riser

• Radius I-40: 44′ to 69′
• Radius 1-40-ON: 52′ to 76′
• Flow 1-40: 7.6 to 29.5 GPM
• Flow 1-40-ON: 13.0 to 33.7 GPM
• Recommended pressure range: 40 to 100 PSI
• Operating pressure range: 40 to 100 PSI
• Precipitation rates: 0.4 in/hr approx.
• Nozzle trajectory: 25 degrees
• Exposed diameter: 2″
• Inlet size: 1″
• Overall height: 7 7/8″
• Pop-up height: 4″

Brochure
Details

Warranty period: 5 years
