Description

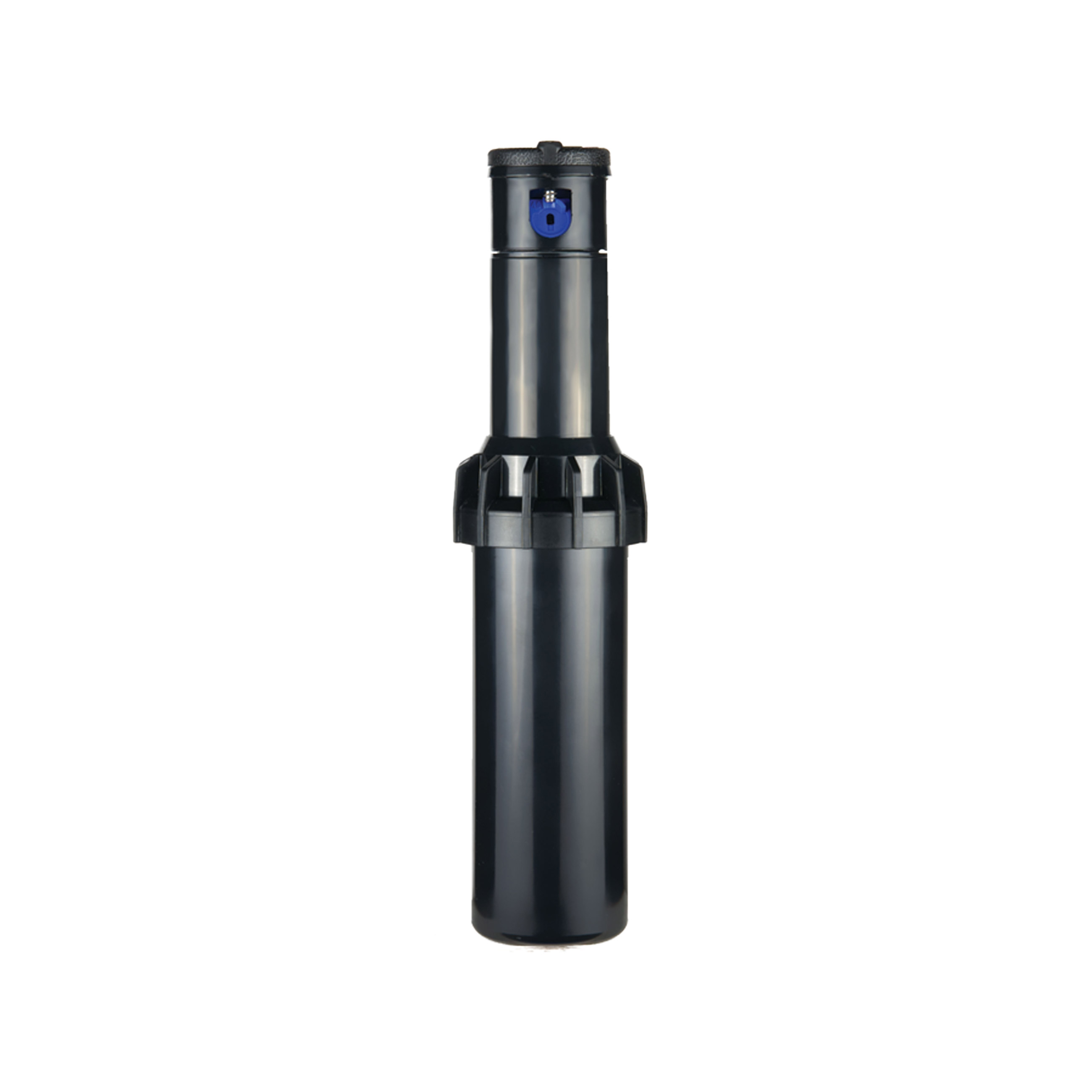

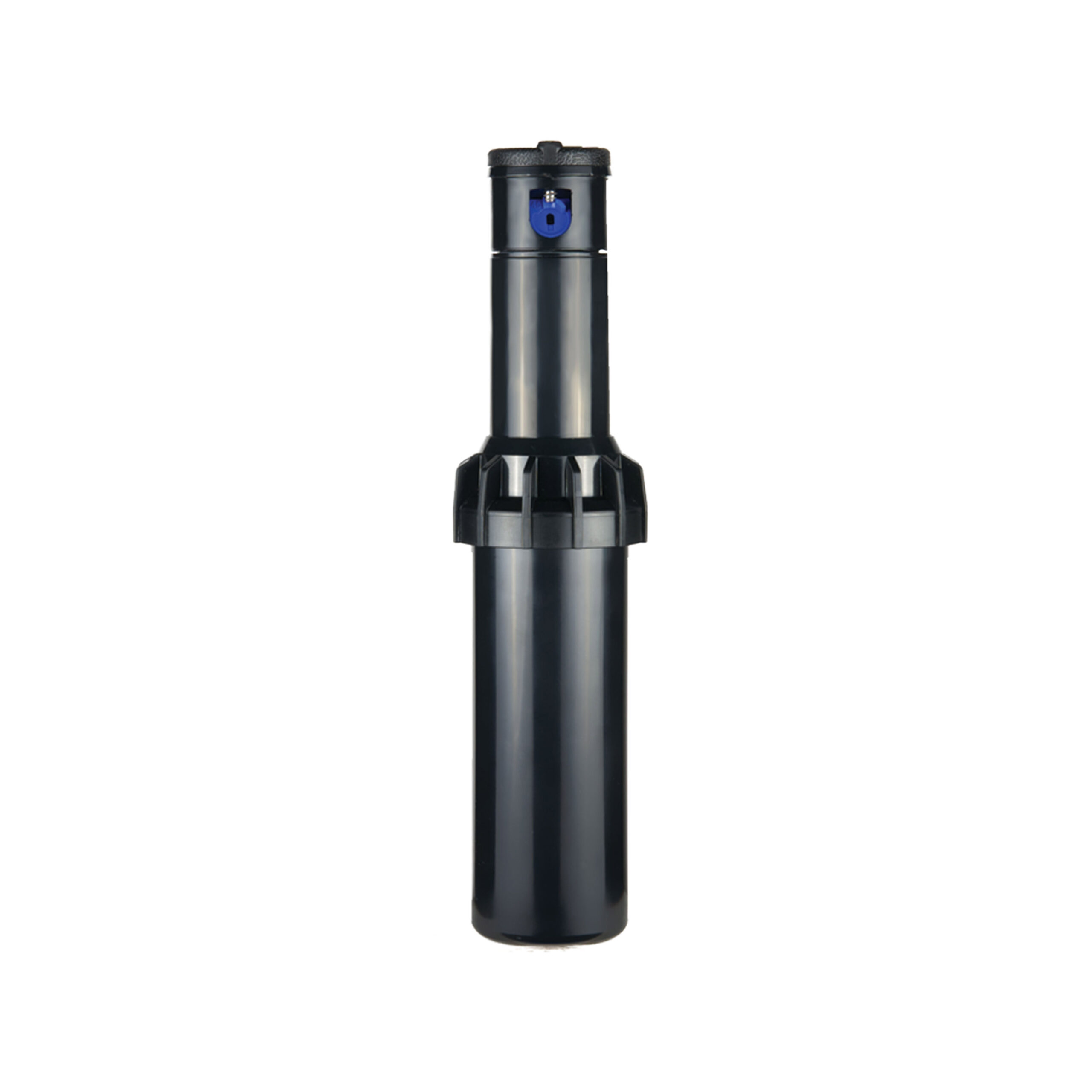

Hunter I-20-04, 4″ Pop-up Sprinkler

Standard features of the Hunter I-20-04 includes an adjustable arc, plastic riser, check valve, 8 standard nozzles, and 4 low-angle nozzles. If you’ve ever desired the convenience of being able to use just one rotor to cover all of your needs, here it is.

Do you have a small area for which you don’t want to create a separate spray zone? Is a portion of your landscape in sandy soil? Is the landscape a mix of shrub zones and expanses of grass? Does one part of the turf require a higher cut? With all the features on today’s I-20 Ultra (most notably its ability to effectively cover a radius range from 17 up to 47′) there’s a single-sprinkler alternative to stocking a variety of rotors and sprays.

With over 22 different nozzle choices, the Hunter I-20 Ultra rotor can handle the full range of irrigation needs.

• Radius: 17’ to 47’
• Flow: 0.36 to 14.8 GPM
• Inlet Size: 3/4” NPT
• Models: Shrub, 4″, 12″
• Arc setting: 50 to 360 degrees
• Factory installed rubber cover
• Through-the-top arc adjustment
• Quick check arc mechanism
• Water lubricated gear-drive
• Nozzle choices: 34
• Nozzle racks: 1.5 to 8.0 Blue, 2.0 to 4.5 Low Angle Gray, 0.50 to 3.0 Black, 6.0 to 13.0 Green, MPR-25, MPR-30, MPR-35

• Athletic Fields
• Commercial
• Ground Cover
• High Vandalism Areas
• Municipalities
• Reclaimed Water-If needed add to comments in your order
• Residential Riser-Mounted Sprinklers
• Shrubs

• Arc setting: 50 to 360 degrees
• Factory installed rubber cover
• Models plastic riser: Shrub, 4″, 6″, 12″
• Models stainless riser: 4″, 6″
• Nozzle choices: 34
• Nozzle racks: 1.5 to 8.0 Blue, 2.0 to 4.5 Low Angle Gray, 0.50 to 3.0 Short Radius Black, 6.0 to 13.0 Green, MPR-25, MPR-30, MPR-35
• Quick check arc mechanism
• Through-the-top arc adjustment
• Water lubricated gear-drive

• Discharge rate: .9 to 14.3 gpm (0.20 to 1.86 m3/hr; 3.4 to 31.0 l/min)
• Drain check valve for up to 10′ (3.0 m) elevation change
• Flow Rate: 0.36 to 14.8 GPM
• Nozzle trajectory: standard – 25; low-angle – 13
• Operating pressure range: 20 to 100 PSI (1.4 to 6.9 bars; 137 to 689 kPa)
• Precipitation rates:approximately .4″ (10 mm) per hour at 50 psi (3.4 bars; 344 kPa) for spacing from 18′ to 45′ (7.6 to 13.7 m)
• Radius: 17′ to 46′
• Recommended pressure range: 40 to 60 psi (2.8 to 4.1 bars; 275 to 413 kPa)
• Exposed Diameter: 1/3/4
• Inlet size: 3/4″
• Overall height: 7 1/8″
• Pop-up height: 4″

Brochure
Details

Warranty period: 5 years
