Description

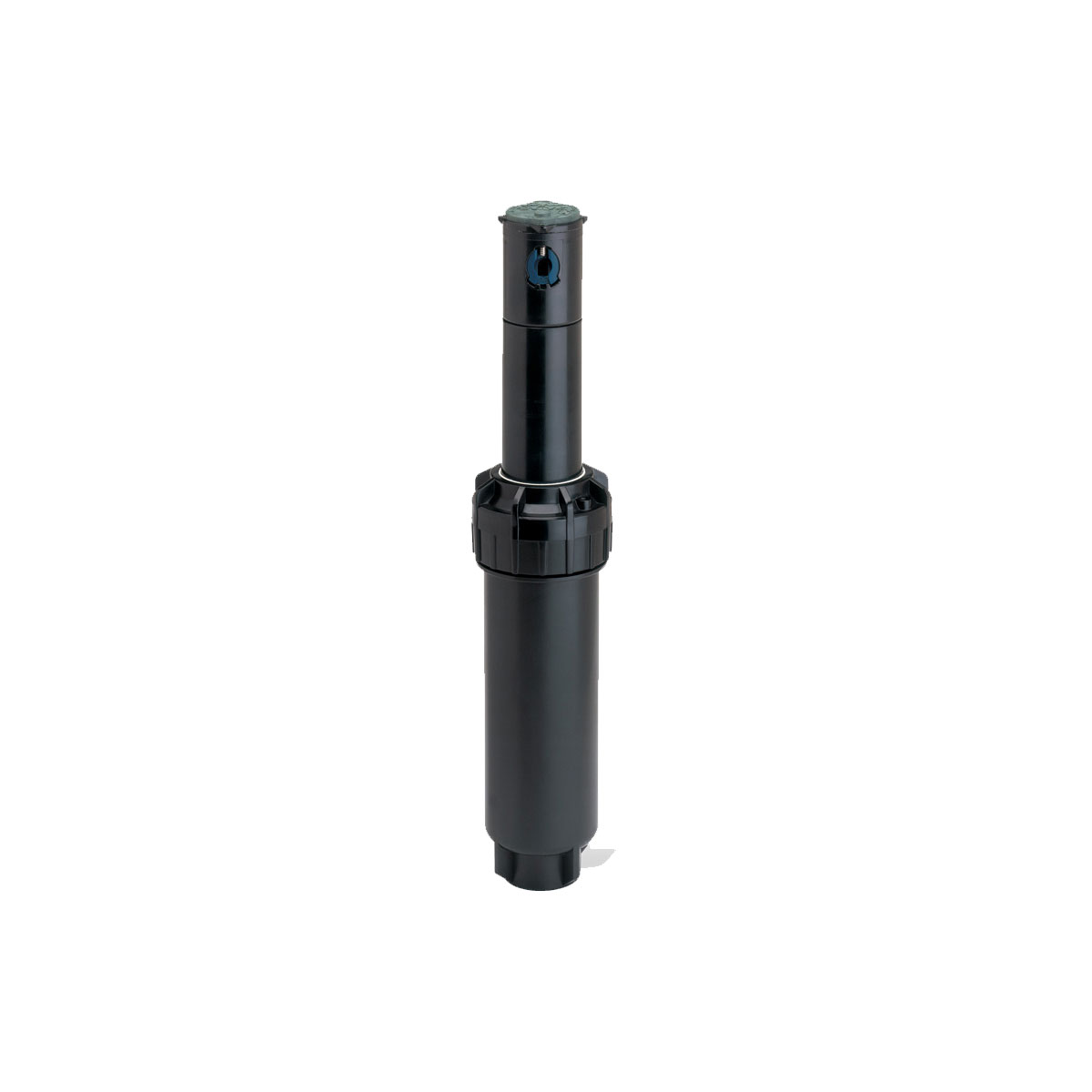

Rain Bird 5006-PC, 6″ Part/Reverse, Part Circle Pop-up Gear Driven Rotor, Radius 25′ to 50′

Relax with the knowledge your landscape is being watered by the reliable Rain Bird 5006-PC and industry-leading Rain Curtain Nozzle Technology. Rain Bird® 5000 Series Rotors are ideal for medium to large-size lawns and evenly distribute water from 25 to 50 feet.

Outstanding Results
The Rain Bird 5006-PC with Rain Curtain Technology are engineered to deliver a uniform spray pattern, giving you superior distribution uniformity and a consistently greener lawn with less water. Get even greater savings with optional in-stem pressure regulation (PRS).

Superior Wind Resistance
The larger water droplets produced by Rain Curtain technology prevent misting and airborne evaporation so the right amount of water is delivered to the right place, saving you water and money.

Superior Close-in Watering
Gentle close-in watering eliminates dry spots around the rotor, prevents seed washout and allows the turf to grow healthy with no matting or bending.

Design Solutions
• 40-360° arc rotation and reversing full-circle rotation in one. (A non-reversing full-circle only unit is also available)5000 in 4″, 6″ and 12″ available in shrub or in stainless steel
• 5000 Series 4″ and 6″ models available in stainless steel
• Award-winning MPR nozzle set simplifies design and installation by providing matched precipitation from 25′ to 35′ (7.6 to 10.7m)
• Standard rubber cover for extra protection. 5000 Plus Series features a green cover while the 5000 Series features a black cover
• True 4″ (10 cm), 6″ (15.2 cm) and 12″ (30.5 cm) pop-up (measured from the cover to the nozzle

Durability
• Additional O-rings and seals for extra protection in “gritty” waterHeavy-duty cover assembly for extra durability in residential or commercial applications
• Heavy-duty retract spring assures positive pop-down
• Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction

Installation and Maintenance
• Faster maintenance with a new self-cleaning arc adjustment screw
• Radius adjustment screw allows up to 25% radius reduction without changing nozzlesSlip clutch mechanism for quick adjustment on installation
• The 5000 Plus features a flow shut-off device to stop the flow of water to a particular head while the system is still in operation
• Top-adjust arc adjustment requiring only a flathead screwdriver

Options
• Pre-installed Rain Curtain Nozzle on most popular 5000 and nozzle combinations
• Purple cover for easy identification of non-potable systems
• Seal-A-Matic (SAM) check valve holds up to 7 feet (2.1m) of elevation change to prevent puddling and erosion caused by low head drainage
• Stainless steel riser helps deter vandalism on public turf areas (4″ and 6″ models only)

Rain Curtain Nozzle Technology
• Rain Curtain Nozzles standard on all 5000 Series Rotors
• Large water droplets for greater wind resistance
• Effective close-in watering
• Even distribution over the entire radius
• Self-aligning nozzles
• Tree of nozzles including four low angle (angle of trajectory 10°) and eight standard angle Rain Curtain Nozzles (angle of trajectory 25°) provides 25′ to 50′ (7.6m to 15.2m) distance of throw

Rain Curtain Nozzle Technology Details

Operating Range
• Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h)
• Radius: 25 to 50 feet (7,6 to 15,2 m)
• Radius may be reduced up to 25% with radius reduction screw
• Pressure: 25-65 psi (1,7 to 4,5 bar)
• Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
• 3/4″ (20/27) NPT female bottom threaded inlet
• Reversing full and part circle adjustment 40° – 360°
• Full circle only adjustment 360°

Dimensions

• Pop-up height: Shrub; 4″ (10,2 cm); 6″ (15,2 cm); 12″ (30,5 cm)
• Overall body height: Shrub: 7 3/4″ (19,7cm) 4″: 7 3/8″ (18, 5 cm); 6″: 9 5/8″ (24,5 cm); 12″: 16 7/8″ (42,9 cm)
• Exposed surface diameter: 1 5/8″ (4,1 cm)

Performance Data

Warranty period: 5 years
