Description

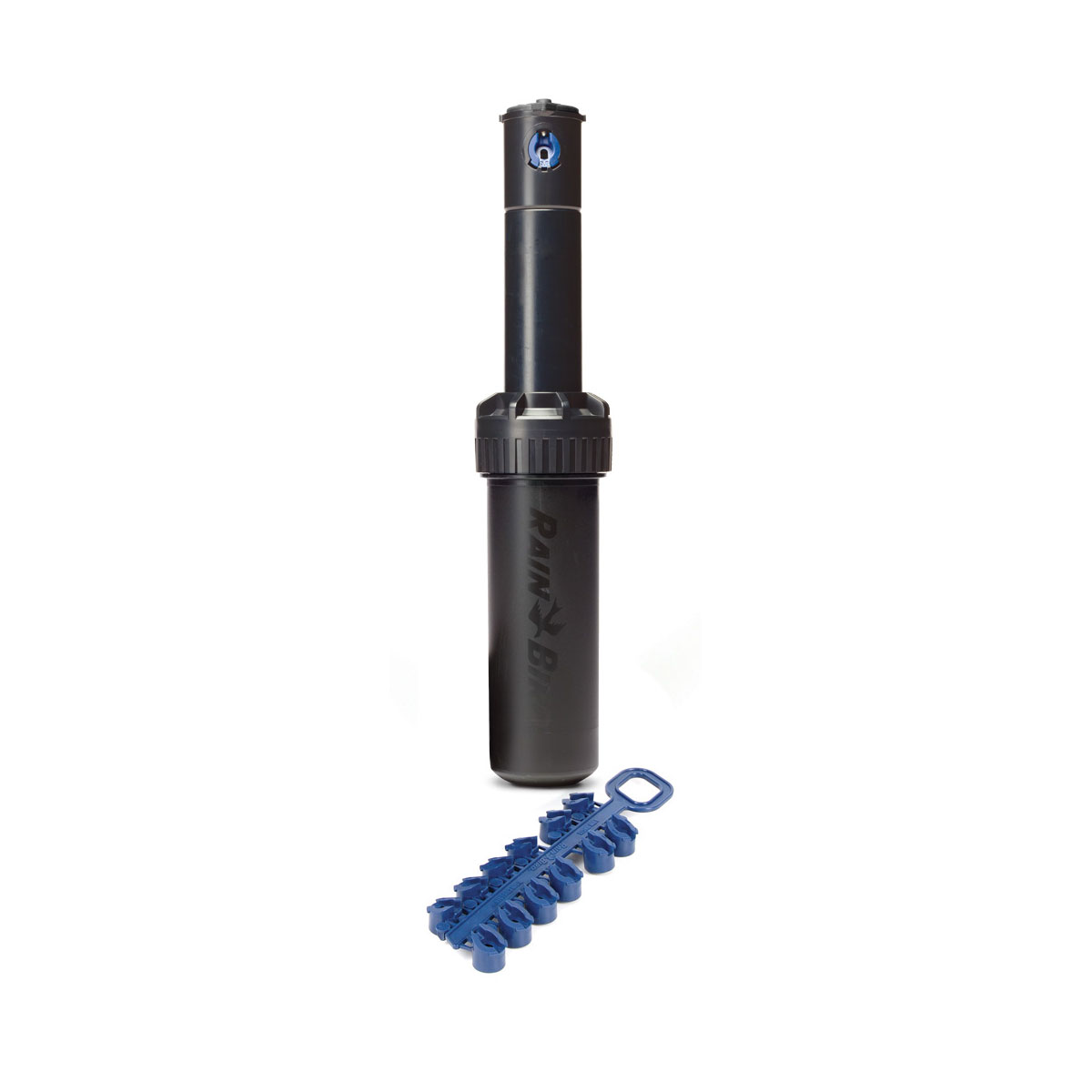

Rain Bird 5004+PCSAM, Plus Series, 4″ Part/Reverse Full Circle with SAM (Check Valve) & Flow Shutoff (PL)

Relax with the knowledge your landscape is being watered by a reliable Rain Bird 5004-PPCSAM Rotor and industry-leading Rain Curtain Nozzle Technology. The Rain Bird 5004-PPCSAM Rotor is ideal for medium to large-size lawns and evenly distribute water from 25 to 50 feet.

• Professional grade rotor offers rugged durability and performance
• 26 – 38 ft. watering distance with pre-installed 3.0 GPM nozzle
• Up to 50 ft. watering distance by changing nozzles (supplied)
• 4 in. pop-up clears taller grass
• 3/4 in. female threaded bottom inlet
• Simple arc and radius adjustment from the top requiring only a flat-bladed screwdriver
• Water-lubricated gear-drive design for durable, reliable operation
• Dual-action, positive stop wiper seal protects internals from debris and, together with a heavy duty stainless steel spring, assures positive pop-up and retraction for water savings
• Gentle close-in watering eliminates dry spots around the rotor, also avoiding seed wash-out
• Includes 12 extra nozzles: (3 low trajectory 1.0 to 3.0 GPM and 8 Rain Curtain nozzles 1.5 to 8.0 GPM)
• Durable rubber cover

• Rain Curtain Cross Reference Guide
• Rain Curtain Nozzle Technology Details

Operating Range
• Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h)
•  Radius: 25 to 50 feet (7,6 to 15,2 m)
• Radius may be reduced up to 25% with radius reduction screw
• Pressure: 25-65 psi (1,7 to 4,5 bar)
• Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)

Specifications
• 3/4″ (20/27) NPT female bottom threaded inlet
• Reversing full and part circle adjustment 40° – 360°

Dimensions
• Pop-up height: 4″ (10,2 cm)
• Overall body height:  7 3/8″ (18, 5 cm)
• Exposed surface diameter: 1 5/8″ (4,1 cm)
Note: Pop-up height measured from the cover to the nozzle. Overall body height is measured popped down

• Brochure
• Details
• Performance Data

Warranty period: 5 years
