Description

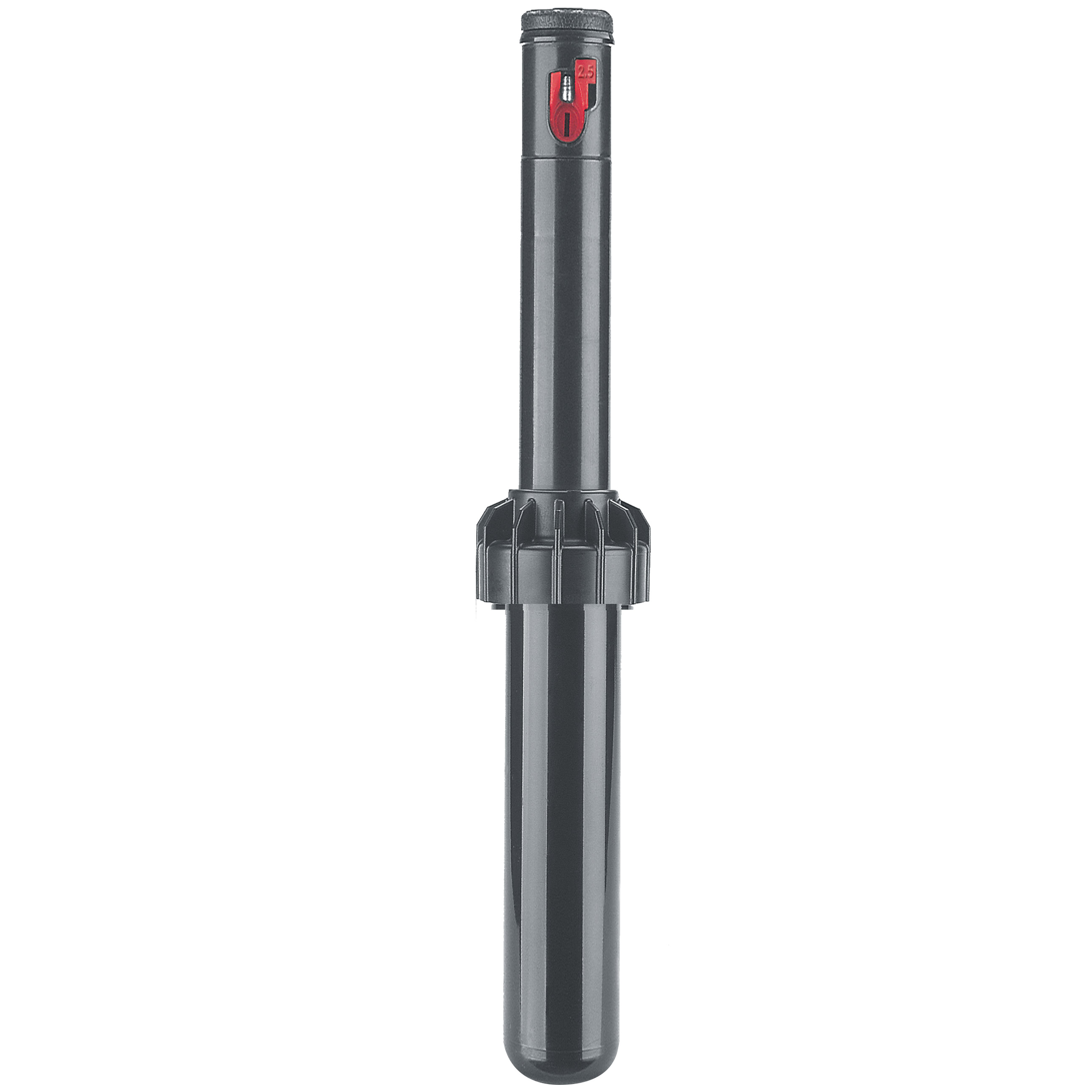

Hunter PGJ-06, 6″ Pop-up Sprinkler

The  Hunter PGJ-06 is a rack of easy-to-install-and-change, water-efficient nozzles… just like  Hunter’s PGP products, which includes the Hunter PGP-ADJ, and the Hunter PGP-04 Ultra. The PGJ-06 features an adjustment from the top of the sprinkler… just like PGP and the safety and durability of a rubber cover… just like the PGP. The Hunter PGJ-06 is a chip off the ol’ block, in essence a PGP “junior.”

Hunter has scaled down the world’s top-selling sprinkler. The Hunter PGJ-06 is perfect for applications that typically call for a spray but where it’s now possible to have all the benefits of a rotor. This saves water, reduces liability, and increases system life. A drain check valve keeps lines from draining when the system is shut off. The PGJ-06 is capable of working in tandem with larger rotors to combine large and small areas in a single zone, offering a convenience and efficiency that sprays do not. With the Hunter PGJ-06, fewer heads perform more efficient work for a more economical price.

• Ground cover and/or shrubs
• Low pressure areas
• Reclaimed water
• Residential

• Arc setting: 40 to 360 degrees
• Factory installed rubber cover
• Models: Shrub, 4″, 6″, 12″
• Nozzle choices: 8
• Nozzle range: 0.75 to 5.0
• Quick check arc mechanism
• Standard factory installed nozzle: 2.0 only
• Through-the-top arc adjustment
• Water lubricated gear-drive
• Drain Check Valve (up to 10 ft. of elevation)
• Headed and Slotted Set Screw PGJ
• Optional Reclaimed Water ID

• Flow: 0.64 to 5.3 GPM
• Nozzle trajectory: 14 degrees approx.
• Operating pressure range: 20 to 100 PSI
• Precipitation rates: 0.67 in/hr approx Radius: 15′ to 37′
• Recommended pressure range: 30 to 50 PSI
• Exposed diameter: 1 1/8″ Inlet size: 1/2
• Overall height: 7 1/8″
• Pop-up height: 4″

• Brochure
• Details
• Installations
• Instructions
• Performance Chart

Warranty period: 2 years
