Description

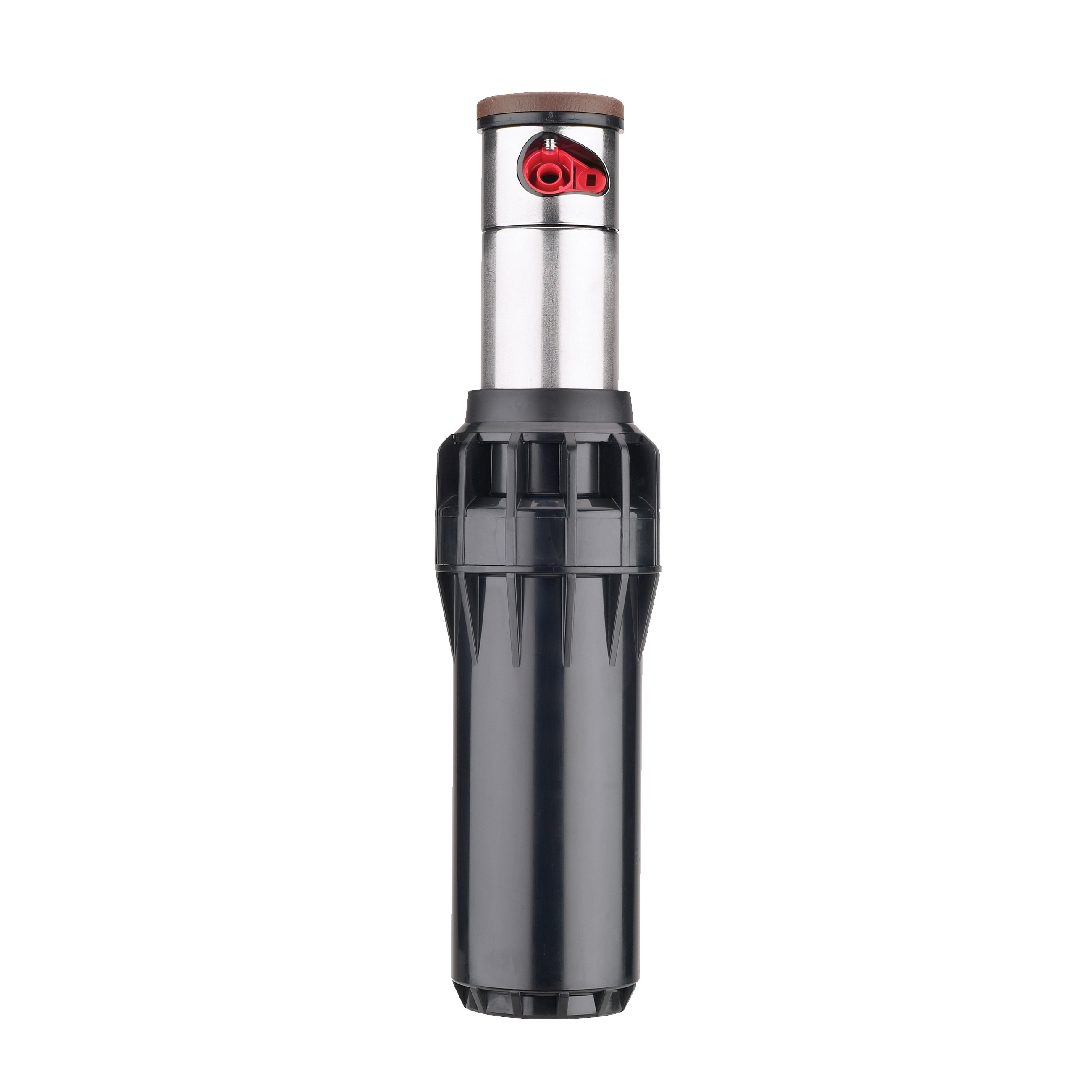

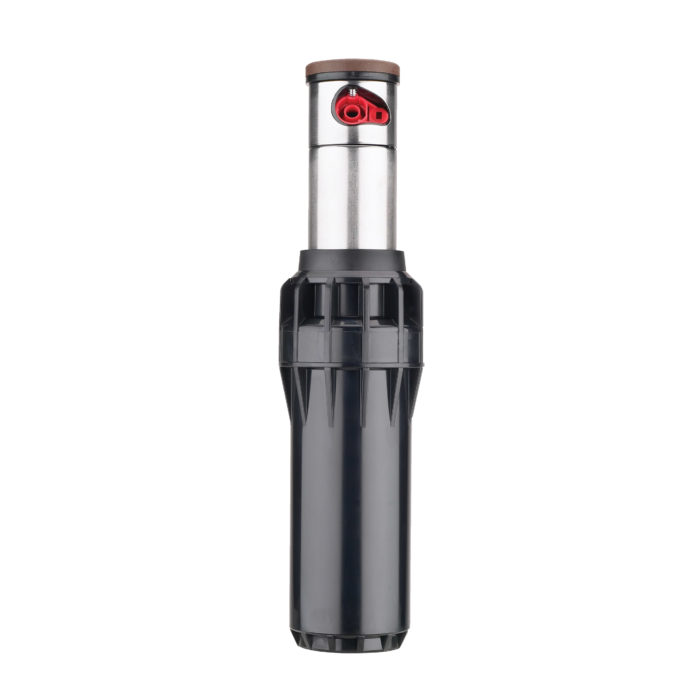

Hunter I-25-04-SS, 4″, Stainless Steel, Pop-up Sprinkler

For durability, performance and economy on medium to large area sites, no other rotor brings it all together like the Hunter I-25-04-SS. It features a ribbed body and cap for better grip. Features also include an extra-thick heavy-duty rubber cover. Also the industry’s smallest exposed surface area in its category.

Hunter’s I-25-04-SS is engineered with a patented VStat® self-adjusting starter. This product also engineered to be compact and extra-beefy construction. Plus, an optional stainless steel riser for even more toughness. There is plenty to offer at quite an attractive price. No wonder its the pick of so many people for so many jobs.

• Overall height: 7 7/8″
• Pop-up height: 4
• Exposed diameter: 1 7/8″
• Inlet size: 1″ NPT
• Radius: 37′ to 71′
• Flow rate: 3.8 to 31.5 GPM
• Recommended pressure range: 40 to 100 PSI
• Operating pressure range: 40 to 100 PSI
• Precipitation rates: 0.4 in/hr approx.
• Nozzle trajectory: 25 degrees

• Athletic Fields
• Commercial/Municipalities
• High Vandalism Areas
• Reclaimed Water

• Arc setting: 50 to 360 degrees
• Factory installed rubber cover
• Models plastic riser: 4″
• Models stainless riser: 4″
• Nozzle choices: 12
• Check arc mechanism
• Through-the-top arc adjustment
• Water lubricated gear-drive
• Automatic Arc Return
• Color coded nozzles
• Drain Check Valve (up to 10 ft. of elevation)
• Non-Strippable Drive
• Optional Reclaimed Water ID
• Part- and Full-Circle in One Model
• Stainless Steel Riser

• Radius: 37′ to 71′
• Flow rate: 3.8 to 31.5 GPM
• Recommended pressure range: 40 to 100 PSI
• Operating pressure range: 40 to 100PSI
• Precipitation rates: 0.4 in/hr. approx.
• Nozzle trajectory: 25 degrees

Brochure
Details

Warranty period: 5 years
