Description

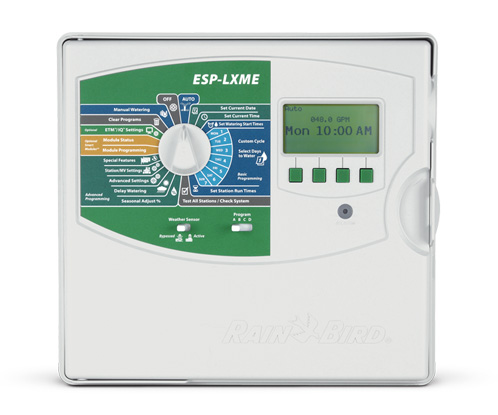

Rain Bird ESP8-LXMEF-8-Station Sprinkler Controller-Sprinkler Controller with Flow Smart Module™
The Rain Bird ESP8LXMEF-8-Station Sprinkler Controller with the Smart Flow Module provides enhanced features for commercial use. The Flow Smart Module™ features the capacity for flow learning, logging, and problem reaction. The Flo-Watch™ protection feature monitors high and low irrigation conditions with user-defined reactions. The ESP-LXD offers the ability to expand from 50 stations to up to 200 stations. So you can handle sites large or small, while stocking fewer controllers and components. The user-friendliness of Extra Simple Programming cuts programming time, while the spacious cabinet and quick-connect terminals make installation a snap. From top to bottom, the Rain Bird ESP8-LXMEF-8-Station Sprinkler Controller is engineered to help you move on to the next job sooner.
• Brochure
• Specifications
Features
• 6 user-selectable languages
• Dynamic station numbering eliminates station numbering gaps
• Front panel is removable and programmable under battery power
• Hot-swappable modules, no need to power down the controller to add/remove modules
• Large LCD display with easy to navigate softkey user interface
• Master valve/pump start circuit
• Non-Volatile (100-year) program memory
• Standard 10kV surge protection
• Weather Sensor input with override switch
Specification
Diagnostic
• Alarm light with external case lens
• Electronic diagnostic circuit breaker
• Program summary and review
• Variable test program
Controller Hardware
• 8- or 12-stations base unit expandable to 48 stations with 4-, 8- and 12-Station Modules
• Flow Smart Module™ factory installed or field upgradable
• Optional Metal Case & Pedestal
• Plastic, locking, UV resistant, wall-mount case
Water Management
• 365-Day Calendar Day Off
• Cycle+Soak by station
• FloManager manages hydraulic demand, making full use of available water to shorten total watering time
• Flo-Watch protection for high and low flow conditions with user defined reactions
• Global Monthly Seasonal Adjust
• Normally Open or Closed Master Valve programmable by station
• Optional Flow Smart Module with Learn Flow utility and flow usage totalizer
• Program Seasonal Adjust
• Programmable Station Delay by program
• Rain Delay
• SimulStations™ are programmable to allow up to 5 stations to operate at the same time
• Weather Sensor programmable by station to prevent or pause watering
• Water Windows by program plus Manual MV Water Window
