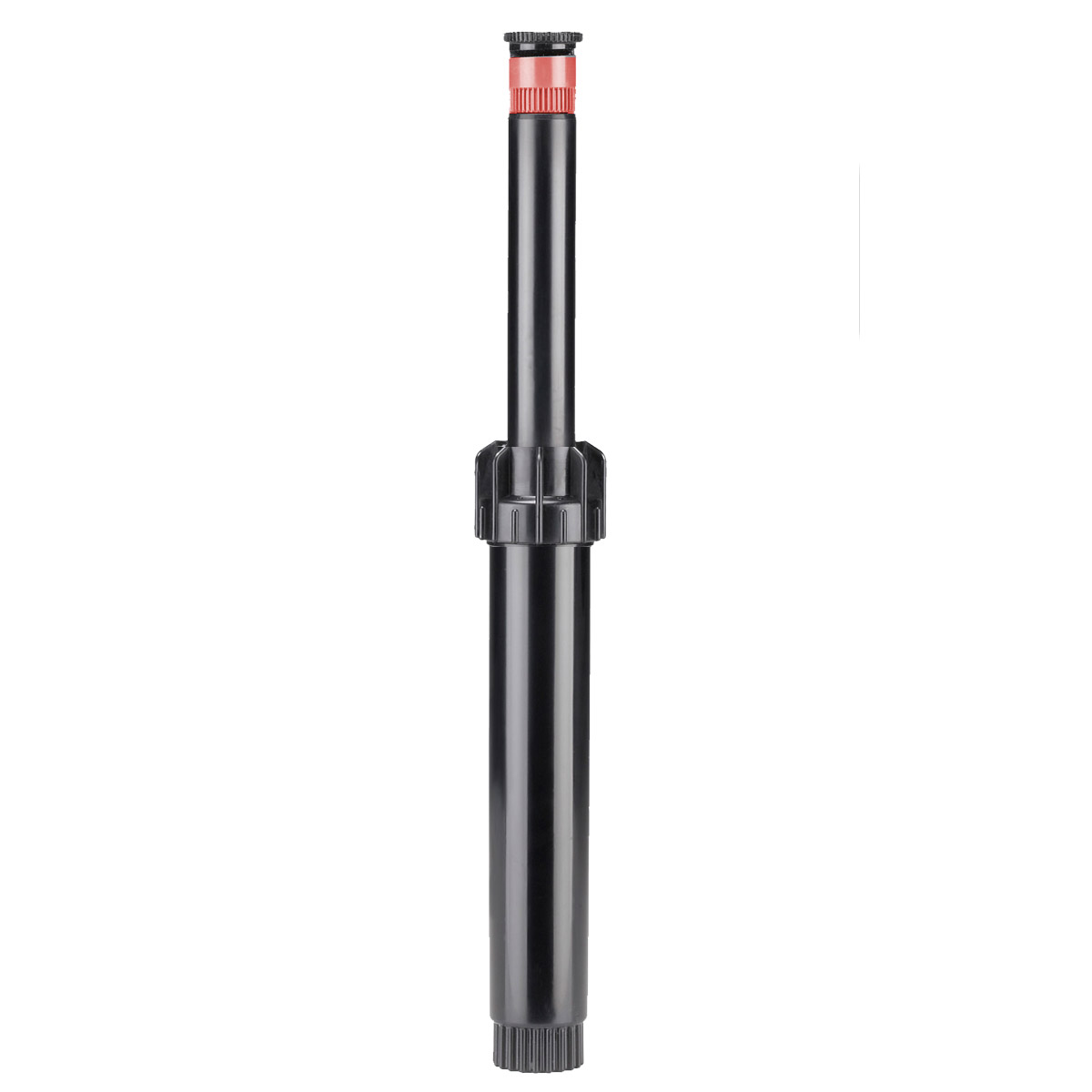

Hunter PSU-06-17A, 6″ Pop-up Body, PS-Ultra Sprinkler, Radius 17′
The Hunter PSU-06-17A is a compact slim-line spray sprinkler is available in 2″, 4″, and 6″ models. Its innovative body incorporates a reliable two-piece ratchet, durable cap, male-threaded riser, and large filter screen, providing double filtration on 4″ and 6″ models. Additionally, the 2″ and 4″ models are retro-compatible with existing PS Spray bodies, which allow for a quick and easy upgrade. Standard PS Ultra models include a pre-installed Pro Adjustable nozzle. A Flush Plug version is available without a nozzle or filter screen. With so many compatible nozzles to choose from, finding the most efficient solution for the right application is simple and easy.
• Field-installed check valve option
• Residential
• Shrubs-sprinklers on risers
• Turfgrass
• Application: Residential Models: 2″, 4″, 6″
• Nozzle choices: 5
• Flow rate: 0.2 to 5.6 GPM
• Nozzle choices: 10A, 12A, 15A, 17A, 5′ x 30′ side strip (side strip pattern available on 2″ and 4″ models only)
• Preinstalled Pro Adjustable nozzle
• Enhanced cap for more durability, easier handling, and extended riser seal life 2″ and 4″ models can retro-fit into older style PS sprays
• Two-piece ratcheting riser
• Male threaded riser to accept all female nozzles
• Available with flush plug (large filter screen not included)
• Extra large filter screen
• Radius: 9′ to 19′
• Flow rate: 0.2 to 5.6 GPM• Recommended pressure range: 20 to 70 PSI
• Precipitation rates: 1.6 to 1.9 in/hr approx.
• Exposed Diameter: 1¼”
• Inlet Size: ½”
• Overall Height: 9 1/2″”
• Pop-up Height: 6″
• Brochure
• Instructions
Warranty period: 2 years
