Description

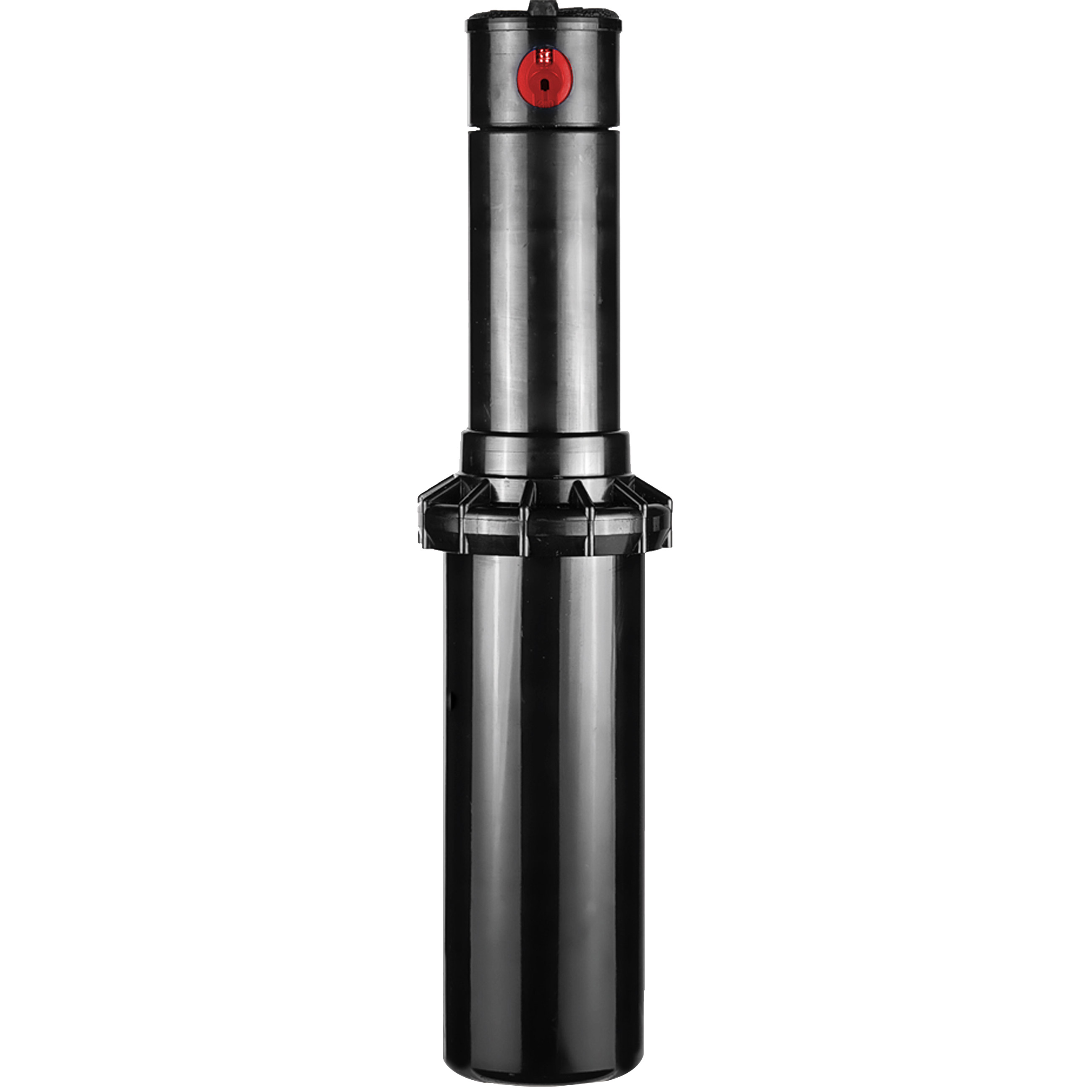

Hunter PGP-ADJ-04, 4″ Pop-up Sprinkler

The Hunter PGP-ADJ-04 is Hunter’s original product. The design and performance of the Hunter PGP-ADJ-04, has placed this sprinkler a cut above the rest. Improvements to the PGP-ADJ-06 have allowed it to remain the number one selling rotor in the world ever since.

This sprinkler is designed for residential and light commercial irrigation. This pop-up sprinkler rotates silently, then disappears when the job is done. It delivers even water distribution. It is also unequaled for reliability, durability, versatility, and value.

The Hunter PGP-ADJ-04 is driven by todays technology. This includes the industries best gear mechanism to provide you with years of service. With its patented features and Hunter’s years of experience in gear-drive technology, it’s no wonder the Hunter  PGP-ADJ-04 remains the professionals choice.

• Radius: 22′ to 52′
• Flow rate: 0.5 to 14.1 GPM
• Recommended pressure range: 25 to 70 PSI
• Operating pressure range: 20 to 100 PSI
• Precipitation rates: 0.4 in/hr approx.
• Nozzle trajectory: Std = 25 degrees, Low angle = 13 degrees
• Overall Height: 7¾”
• Pop-up Height: 4″
• Exposed Diameter: 1¾”
• Inlet Size: ¾” NPT

• Low pressure areas
• Residential

• Arc setting: 40 to 360 degrees
• Factory installed rubber cover
• Model: 4″
• Nozzle choices: 27 total, nozzle racks – Red, Blue, Gray Low Angle
• Quick check arc mechanism
• Through-the-top arc adjustment
• Water lubricated gear-drive

• Flow: 0.5 to 14.1 GPM
• Nozzle trajectory: Std = 25degrees, Low Angle = 13 degrees
• Operating pressure range: 20 to 100 PSI
• Precipitation rates: 0.4 in./hr. approx
• Radius: 22′ to 52′
• Recommended pressure range: 25 to 70 PSI
• Exposed diameter: 1 3/4″
• Inlet size: 3/4″
• Overall height: 7 3/8″
• Pop-up height: 4″

• Brochure
• Details
• Instructions

Warranty period: 2 years
