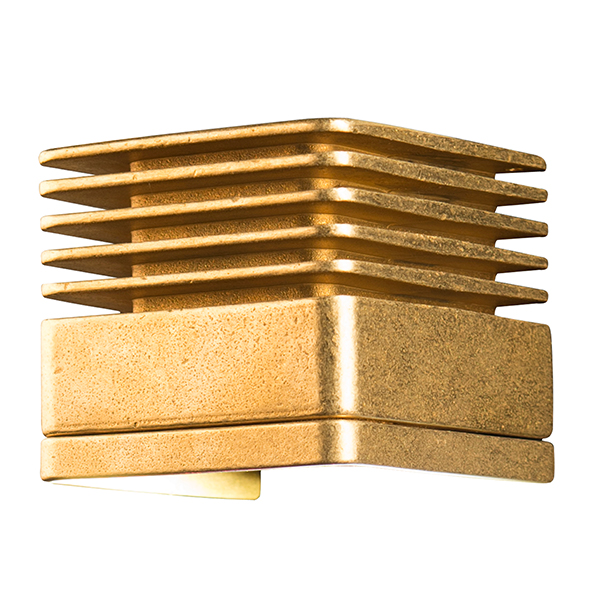

FX Luminaire NL LED Down Light
$112.99 – $250.99
Available on backorder
Description
FX Luminaire NL LED Down Light, the Next Generation of Outdoor Illumination
The FX Luminaire NL LED Down Light truly represents the next generation of fixed-mount LED down lights. This side mounting down light is available with a 1, 3, 6 or 9LED board. The NL comes in all of our metal and powder coat finishes and includes a free mounting bracket that allows for tool-free servicing after initial installation. The NL includes your choice of LED boards, choice of finish, 9 ft. lead wire and mounting bracket. All NL down lights come standard with amber, green, blue and frosted filters.
Please Allow 12-16 business days for shipping
No returns on lighting products
Additional information
| Weight | 3.89 lbs |
|---|---|
| Zoning & Dimming Option | |
| Lamp | |
| Direction | DN – Down, UP – Up Down |
| Shroud | |
| Finish Options | AB-Antique Bronze, AL-Almond, AT-Antique Tumbled, BS-Brass, BZ-Bronze Metallic, CU-Copper, FB-Flat Black, FW-Flat White, SB-Sedona Brown, SV-Silver, WI-Weathered Iron |
Features
NL INCLUDED PARTS
| NL: Includes your choice of LED board, choice of finish, 5 ft. lead wire and mounting bracket. | ||||||||
|---|---|---|---|---|---|---|---|---|
 NL |
Included Filters | |||||||
 Amber |
 Green |
|||||||
 Blue |
 Frosted |
|||||||
FINISH CHART
| Metal Finish Options | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
||||||
ABAntique Bronze * |
ABAntique Bronze * |
ATAntique Tumbled * |
ATAntique Tumbled * |
CUCopper * |
||||||
 |
 |
|||||||||
NPNickel Plate * |
BSNatural Brass |
|||||||||
* May require longer lead time
| Powdercoat Finish Options | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
||||||
WGWhite Gloss |
FWFlat White |
ALAlmond |
BZBronze Metallic |
DGDesert Granite |
||||||
 |
 |
 |
 |
|||||||
WIWeathered Iron |
VFVerde Speckle |
SBSedona Brown |
FBFlat Black |
|||||||
NL ORDERING INFORMATION
FACTORY INSTALLED OPTIONS: Order 1 + 2 (optional) + 3 + 4
| Step | Description | Code | |||||
|---|---|---|---|---|---|---|---|
| 1 | FIXTURE CODE | NL | |||||
| 2 | OPTIONAL ZD | ZD (zoning and dimming capability using ZD Technology™ with the Luxor controller) | |||||
| 3 | LAMP | 1LED (50,000 avg. life hours) 3LED (50,000 avg. life hours) 6LED (50,000 avg. life hours) 9LED (50,000 avg. life hours) |
|||||
| 4 | FINISH | XX (See finish chart) | |||||
EXAMPLE: NL-ZD-9LED-FB = NL – ZD Option – 9LED Board – Flat Black Finish
Specifications
| Number of LEDs | 1 | 3 | 6 | 9 | |||
|---|---|---|---|---|---|---|---|
| Halogen Lumen Output Equivalent |
10 Watt | 20 Watt | 35 Watt | 50 Watt | |||
| Useful LED Life (L70) | 50,000 hrs avg | 50,000 hrs avg | 50,000 hrs avg | 50,000 hrs avg | |||
| Input Voltage | 10 to 15V | 10 to 15V | 10 to 15V | 10 to 15V | |||
| VA Total (Use this number to size the transformer) |
2.4 | 4.5 | 13.5 | 13.5 | |||
| Watts Used | 2.0 | 4.2 | 10.1 | 11.2 | |||
| Lumens per Watt (Efficacy) |
35.8 | 52.2 | 43.9 | 46.9 | |||
| Max Lumens | 66 | 202 | 367 | 398 | |||
| CCT (Ra) | 82.6 | 80.4 | 79.7 | 78.5 | |||

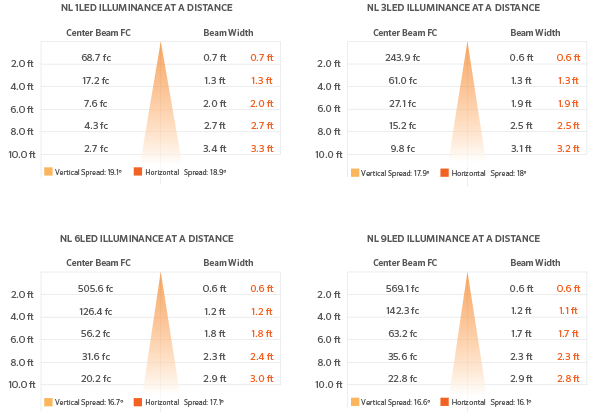

NL PHOTOMETRICS
NL DIMENSIONS
