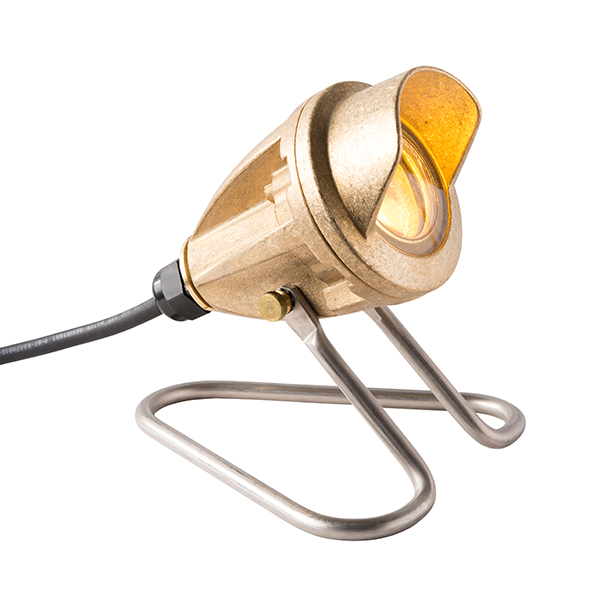

FX Luminaire LL LED Specialty Light

$184.99$268.99

Out of stock

Customized products may take 2 – 4 weeks for delivery

Description

FX Luminaire LL LED Specialty Light, Your Solution for Underwater Lighting

The FX Luminaire LL LED Specialty Light brings all of the efficiency and reliability of LED technology to underwater lighting. Highly versatile, it works with all FX LED boards (1-9), and is compatible with an array of filters that allow water to be colored to match the facade. It also comes with with 30’ of cable for easy installation. The soothing ambiance created by a landscape water feature can be beautifully enhanced with well-designed lighting. The LL produces a powerful underwater light source to illuminate plants, rocks, fish, or a cascading waterfall. Filter options allow you to control shape, color, and strength of light output.

Please Allow 6-9 business days for shipping
No returns on lighting products

• Installation
Specifications

Additional information

Weight 4.35 lbs
Finish Options

Lamp

, , ,

Zoning & Dimming Option

,

Features

LL INCLUDED

LL: Includes fixture, specified LED board, 30′ cable and filters

LL
Included Filters

Amber

Green

Blue

Frosted
FINISH CHART
Metal Finish Options

BS

Natural Brass

LL ORDERING INFORMATION

FACTORY INSTALLED OPTIONS: Order 1 + 2 (optional) + 3 + 4

Step Description Code
1 FIXTURE CODE LL
2 OPTIONAL ZD ZD (zoning and dimming capability using ZD Technology™ with the Luxor controller)
3 LAMP 1LED (50,000 avg. life hours)
3LED (50,000 avg. life hours)
6LED (50,000 avg. life hours)
9LED (50,000 avg. life hours)
4 FINISH BS

EXAMPLE: LL-ZD-9LED-BS = LL – ZD Option – 9LED Board – Natural Brass Finish

Specifications

LL SPEC CHART

Number of LEDs 1 3 6 9
Halogen Lumen
Output Equivalent
10 Watt 20 Watt 35 Watt 50 Watt
Useful LED Life (L70) 50,000 hrs avg 50,000 hrs avg 50,000 hrs avg 50,000 hrs avg
Input Voltage 10 to 15V 10 to 15V 10 to 15V 10 to 15V
VA Total
(Use to size the lighting controller)
2.4 4.5 13.5 13.5
Watts Used 2.0 4.2 10.1 11.2
Lumens per Watt
(Efficacy)
25.4 31 31.8 31.1
Max Lumens 133 282 378
CCT (Ra) 68.5 67.9 80.2 67.5

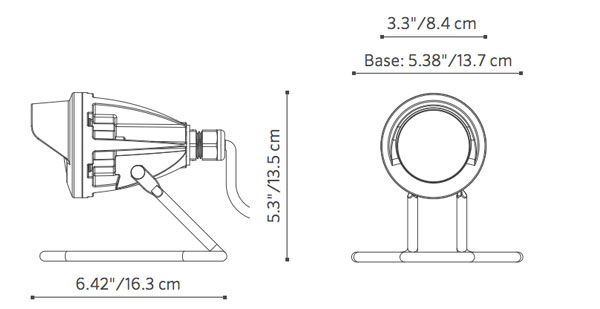

LL DIMENSIONS

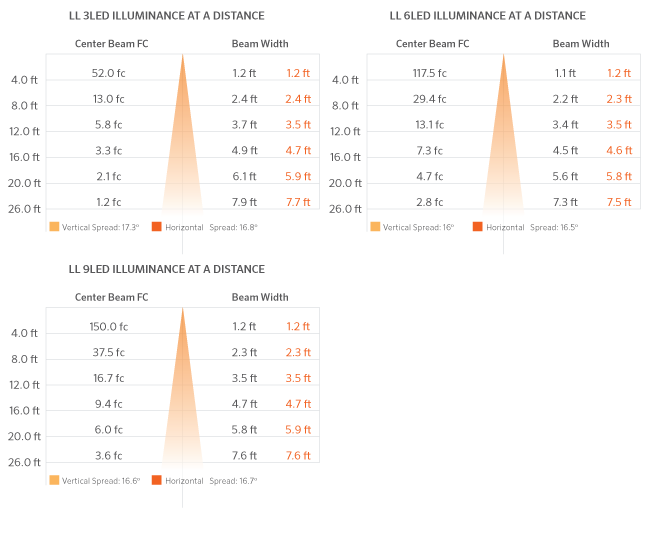

LL PHOTOMETRICS
