FX Luminaire VS Up Light


Available on backorder

Customized products may take 2 – 4 weeks for delivery

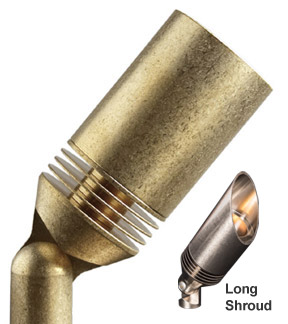

FX Luminaire VS Up Light, Designed for Mid-Sized Landscapes

The FX Luminaire VS Up Light combines first-class LED technology with premium materials to create a fixture that is truly unparalleled.

Utilizing accent lights in a landscape lighting system design can add texture, contrast, and interest. This light provides highly efficient LED accent lights for virtually any outdoor application.

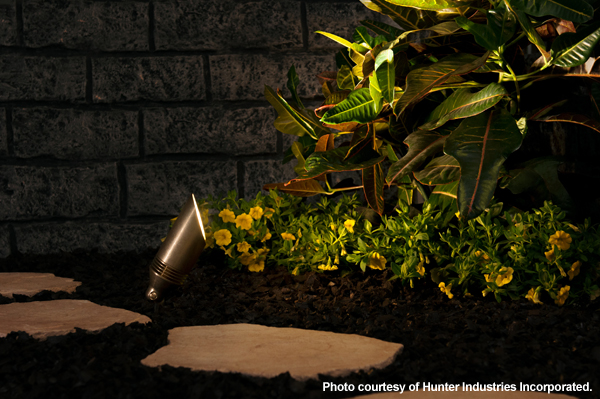

Up lights add texture, contrast, and interest by highlighting trees and landscaping.

Please Allow 12-16 business days for shipping
No returns on lighting products

Brass construction Input voltage: 10-15V
Color temperature filters Natural brass or antique finishes
Compatible with Luxor® technology Phase and PWM dimmable
Cree® Integrated LEDs ProAim™ adjustability


FX Luminaire VS Up Light


Additional information

Weight 4.95 lbs
Zoning & Dimming Option



, , ,

Long Shield Option


Finish Options

, , ,


  Metal Finish Options

FX Luminaire LED Up Light antique bronze finish
Antique Bronze*
on brass
FX Luminaire LED Up Light antique tumbled finish
Antique Tumbled*
on brass
FX Luminaire LED Up Light nickle finish

Nickel Plate*
FX Luminaire LED Up Light natural brass finish

Natural Brass


  VS: Includes fixture, specified LED board, spike, and filters.
Included Filters
Amber Green
Blue Frosted


  VS Ordering Information
    Factory Installed Options: Order 1 + 2 (optional) + 3 + 4 (optional) + 5
Step Description   Code
1 Fixture Code   VS
3 Lamp   • 1LED (50,000 avg. life hours)
• 3LED (50,000 avg. life hours)
• 6LED (50,000 avg. life hours)
• 9LED (50,000 avg. life hours)
4 Shield Code   LS (Long Shield)
5 Finish   AB*, AT*, NP*, BS
  Example: VS-ZD-6LED-LS-AT = VS – ZD Option – 6LED Board – Long Shield – Antique Tumbled Finish

* May require longer lead time

Spec Chart

  VS Spec Chart
  Number of LEDs   1   3   6   9
  Halogen Lumen   10 Watt   20 Watt   35 Watt   50 Watt
  Output Equivalent
( Useful LED Life (L70)
  50,000 hrs. average   50,000 hrs. average   50,000 hrs. average   50,000 hrs. average
  Input Voltage   10 to 15 V   10 to 15 V   10 to 15 V   10 to 15 V
  VA Total (use this number
to size the transformer)
  2.4   4.5   13.5   13.5
  Watts Used   2   4.2   10.1   11.2
  Lumens per Watt (Efficacy)   32   39   30   28
  Max Lumens   59   159   279   357
  CRI (Ra)   78   79   78.8   82.1



  VS Dimensions



  VS Photometrics
