Description

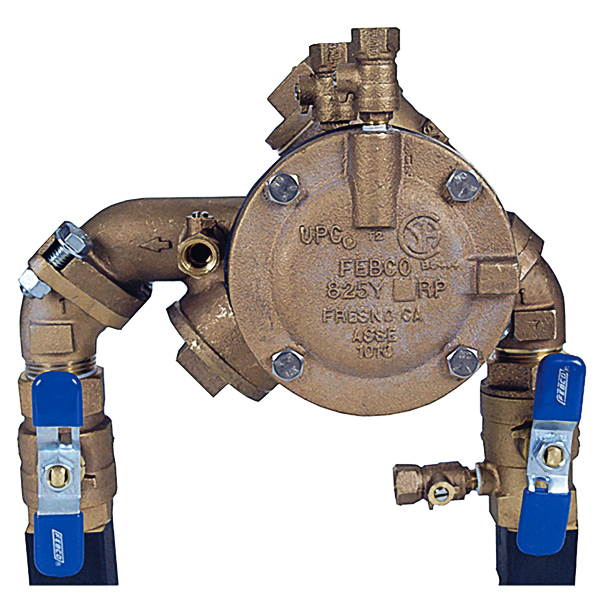

Febco Small Footprint Reduced Pressure Zone Assembly-2″

The Febco Small Footprint Reduced Pressure Zone Assembly-2″, (Small Footprint “N-Shape” Design), model 825YA by FEBCO, is used to protect against high hazard (toxic) fluids in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants. It also used in irrigation systems, boiler feed, water lines, and other installations requiring maximum protection.

This small footprint reduced pressure zone assembly features a bronze body and threaded ball valve shutoffs. Maximum Working Pressure: 175 psi. Mainline valve body and caps including relief valve body and cover are bronze. Check valve moving members shall be center stem guided. Relief valve has a removable seat ring. Check valve and relief valve components are constructed so they may be serviced without removing the valve body from the line. All seat discs are reversible.

• Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California
• Compact design simplifies retrofit
• Eliminates pipe elbows, nipples and unions from the installation
• Field tested design for reliability and performance
• Installation versatility simplifies new and retrofit installations
• Integral flanged union connections allow assembly to be removed from the line for freeze protection or maintenance without the danger of spool substitution
• Low head loss for optimum performance
• Modular relief valve and check valve internal components for ease of maintenance
• Reduces installation time, labor costs and materials
• Replaceable seat rings for longer valve life
• Smaller, less costly protective enclosures can be used to provide freeze and vandalism protection due to compact size of valve

Approvals and Standards
• ANSI/AWWA C511 Conformance
• Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California

Materials
• Diaphragms: Nitrile, fabric reinforced
• Elastomers: Nitrile Seat Discs
• Main valve body: Bronze
• Relief valve body: Bronze
• Springs: Stainless Steel

Pressure and Temperature
• Hydrostatic test pressure: 350psi (24.1 bar)
• Maximum working pressure: 175psi (12.1 bar)
• Temperature range: 32ºF to 140ºF (0ºC to 60ºC)
