ZD MR-16 LED Drop-In Lamp

The ZD MR-16 LED Drop-In Lamp is a convenient high-quality LED lamp. It available in two intensities, four beam angle options, and two color temperatures. Fully potted, it carries a five-year warranty.

This controller can now zone and dim other brands of low-voltage incandescent light fixtures and is a convenient high-quality drop-in LED lamp that converts incandescent fixtures to energy-efficient LED fixtures. When connected to a Luxor ZD transformer, this lamp adds zoning, dimming, and Wi-Fi control capabilities to any brand of low voltage incandescent landscape lighting fixtures.

Please Allow 12-16 business days for shipping
No returns on lighting products

ZD MR-16


Step Description Code
1   Model   MR-16 ZD
2   Halogen Equivalent
  20 (20W)
  35 (35W)
3   Color Temperature
  W Warm (2700K)
  C Cool (3900K)
4   Beam Angle
  VN Very Narrow (10°)
  NF Narrow Flow (25°)
  FL Flood (35°)
  WF Wide Flood (60°)
  EXAMPLE: MR-16 ZD-20-W-VN = MR-16 ZD – 20W – Warm(2700K) – Very Narrow (10°)


  Model   Description
  250015260000   Hex Baffle
  RRMR16   Recessor Ring
  250015170000   Frosted Lens
  250013550000   Spread Lens
  250015240000   Solite Spread Lens

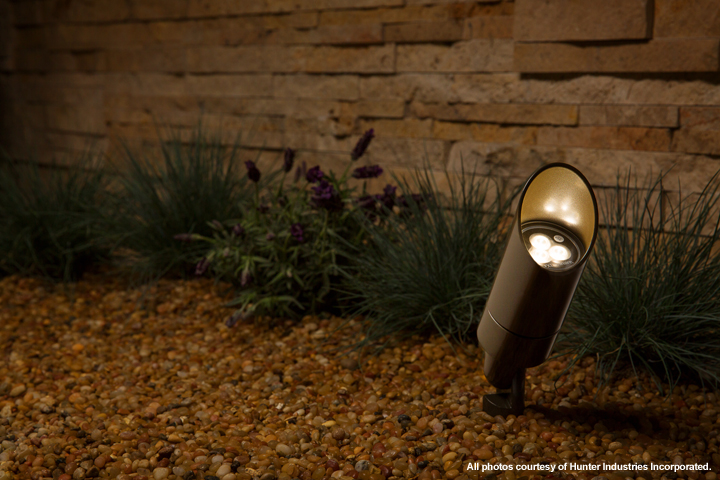

MR16 Photo
