Rain Bird VAN Series-18VAN, Variable Arc Pattern Nozzle, Radius 18′

The Rain Bird VAN Series-18VAN adjustable nozzle is designed for all standard and irregular-shaped turf and shrub areas. It will fit all Rain Bird spray heads and shrub adapters. The VAN Series nozzles are perfect for smaller grassy areas around sidewalks, and driveways.

Rain Bird VAN Nozzles can be adjusted to the exact pattern of your lawn, ensuring your landscape will be precisely watered, so you don’t need to worry about it. They are ideal for odd shaped corners and smaller grassy areas around sidewalks and driveways; they can also be used for watering flowerbeds or shrubs. A complete line of VAN nozzles is available covering a range from 3-18 feet.

• A physical left edge indicator makes it easier to feel the fixed left edge

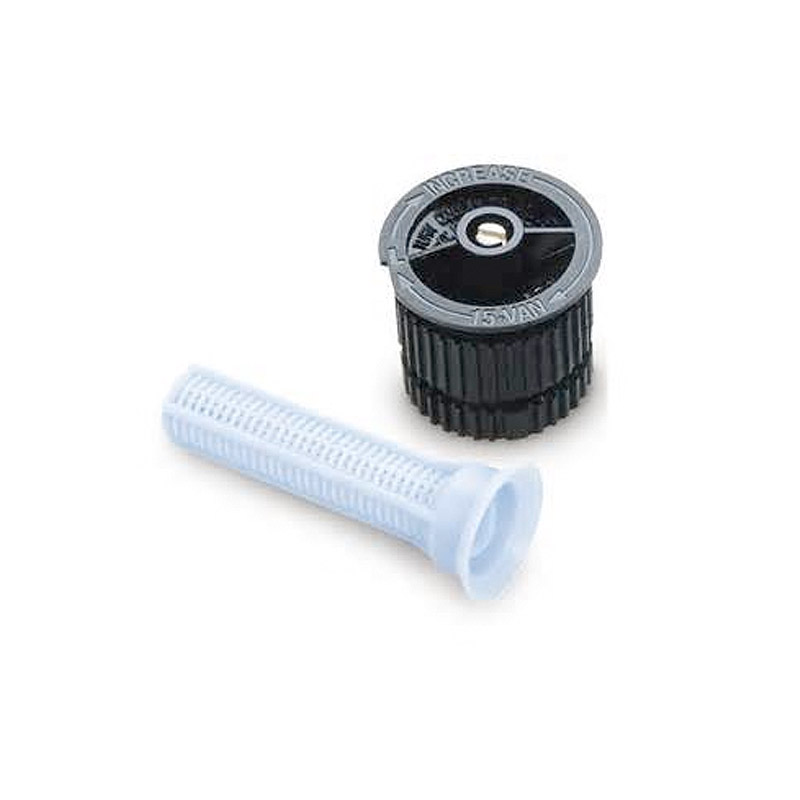

• Blue filter screen (.02″ x .02″) (shipped with nozzles) maintains precise radius adjustment and prevents clogging
• “Captured” screw slot prevents screwdriver slippage during adjustment
• Easy arc adjustment from 0 to 360 degrees for 10-, 12-, 15-, and 18-VAN; 0 to 330 for 4-, 6- and 8-VAN
• Ideal for watering odd-shaped areas
• NEW! Color-coded on top to enhance your productivity
• No special tools required. A small twist of the center collar increases or decreases arc setting
• Stainless steel adjustment screw to adjust flow and radius
• The textured base and collar are easy to grip, even when wet

Radius: *
• 4-VAN: 4 to 6 feet (1.2 to 1.8 m)
• 6-VAN: 4 to 6 feet (1.2 to 1.8 m
• 8-VAN: 14 to 18 feet (4.3 to 5.5 m)
• 10-VAN: 8 to 10 feet (2.4 to 3.0 m)
• 12-VAN: 10 to 12 feet (3.0 to 3.7 m)
• 15-VAN: 12 to 15 feet (3.7 to 4.6 m)
• 18-VAN: 14 to 18 feet (4.3 to 5.5 m)
• Pressure: 15 to 30 psi (1 to 2.1 bar)
• Optimum pressure: 30 psi (2.1 bar)

* These ranges are based on proper pressure at nozzle.
