Description

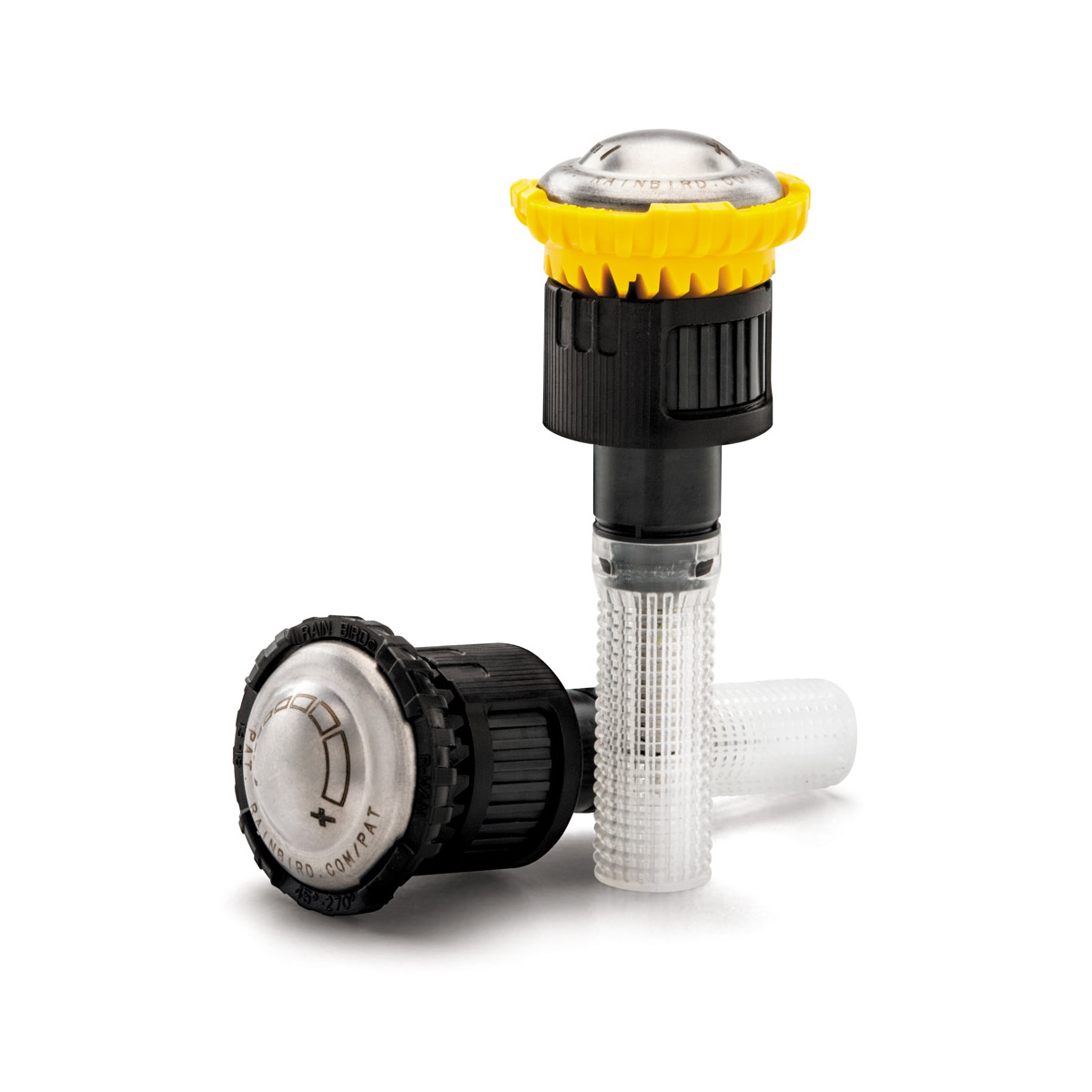

Adjustable Arc 45° to 270°, Adjustable Radius 13′ to 18′

Adjustable nozzles for all standard and irregular-shaped turf and shrub areas. Fits all Rain Bird spray heads and shrub adapters. Retrofitting standard spray nozzles with RBRVAN18 Adjustable Rotary Nozzles can reduce flow by up to 60% and improve water efficiency by up to 30%.

• A physical left edge indicator makes it easier to feel the fixed left edge
• Blue filter screen (0.02″ x 0.02″) (shipped with nozzles) maintains precise radius adjustment and prevents clogging
• “Captured” screw slot prevents screwdriver slippage during adjustment
• Ideal for watering odd-shaped areas
• NEW! Color-coded on top to enhance your productivity
• No special tools required. A small twist of the center collar increases or decreases arc setting
• Stainless steel adjustment screw to adjust flow and radius
• The textured base and collar are easy to grip, even when wet

• Adjustments: Arc and radius should be adjusted while water is running
• Pressure Range: 20 to 55 psi (1,4 to 3,8 bar)
• Recommended Operating Pressure: 45 psi (3,1 bar)
• Spacing: 13’ to 24’ (4,0 to 7,3m)
