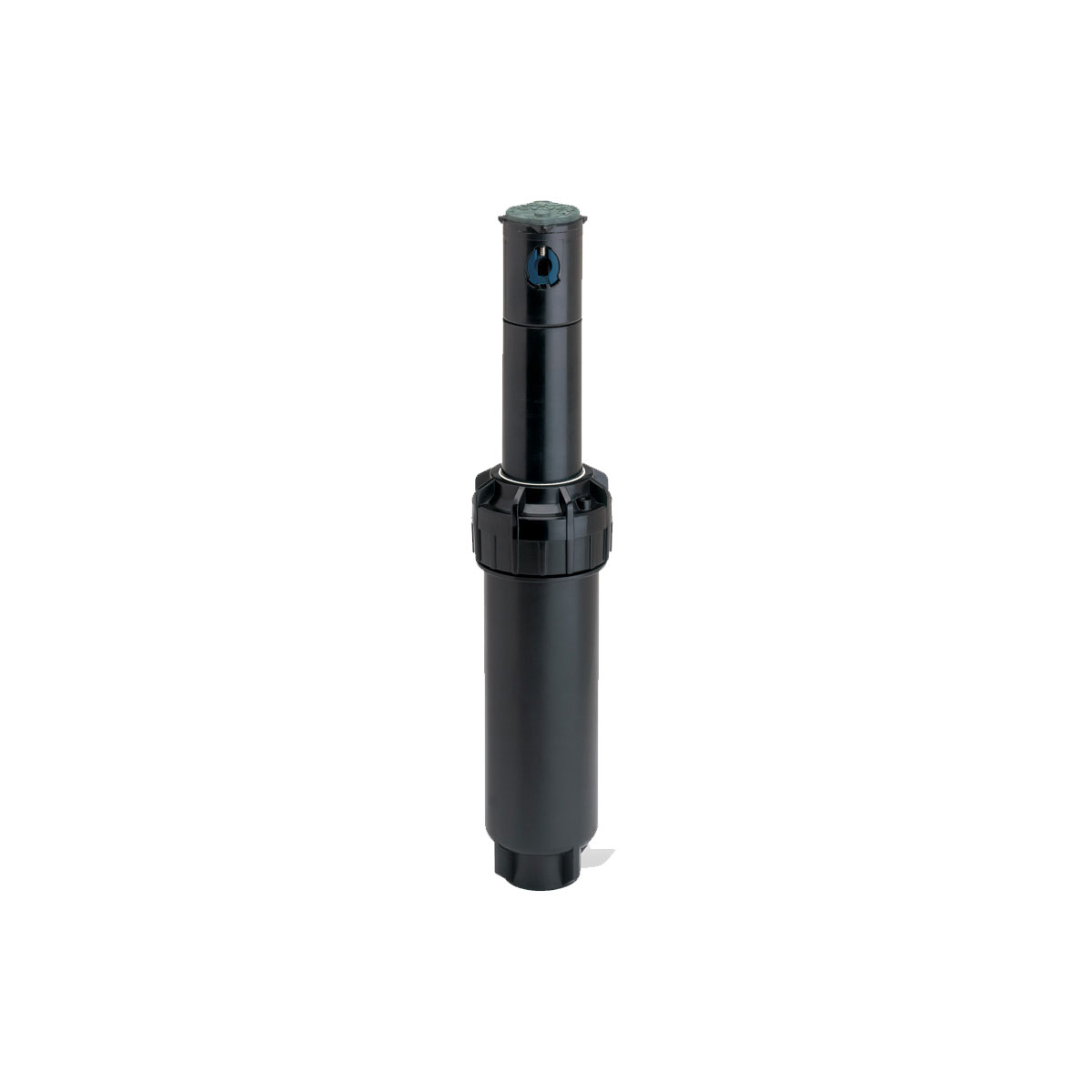

Rain Bird 5004-PL-FC, Plus Series, 4″ Full Circle with Flow Shutoff (PL)

The Rain Bird 5004-PL-FC Rotor is a rugged mid-range gear-drive rotary sprinkler, offering durability, performance, and the convenience of arc adjustment from the top, for residential and light commercial applications.

This versatile rotor offers a standard rubber cover and the convenience of reversing full-and part-circle operation (up to 360 degrees) in one unit. And, with a tree of Rain Curtain™ nozzles, the 5000 Series Rotor offers excellent distribution for top-notch efficiency.

All of this, a proven gear-driven design, and a five-year trade warranty, makes the Rain Bird 5004-PL-FC Rotor one head that will “Take Performance to the Top.”

• Professional grade rotor offers rugged durability and performance
• 26 – 38 ft. watering distance with pre-installed 3.0 GPM nozzle
• Up to 50 ft. watering distance by changing nozzles (supplied)
• 4 in. pop-up clears taller grass
• 3/4 in. female threaded bottom inlet
• Simple arc and radius adjustment from the top requiring only a flat-bladed screwdriver
• Water-lubricated gear-drive design for durable, reliable operation
• Dual-action, positive stop wiper seal protects internals from debris and, together with a heavy duty stainless steel spring, assures positive pop-up and retraction for water savings
• Gentle close-in watering eliminates dry spots around the rotor, also avoiding seed wash-out
• Includes 12 extra nozzles: (3 low trajectory 1.0 to 3.0 GPM and 8 Rain Curtain nozzles 1.5 to 8.0 GPM)
• Durable rubber cover

Rain Curtain Cross Reference Guide
Rain Curtain Nozzle Technology Details

• Exposed surface diameter: 1 5/8″ (4,1 cm)
• Pop-up height: Shrub; 4″ (10,2 cm); 6″ (15,2 cm); 12″ (30,5 cm)
• Overall body height: Shrub: 7 3/4″ (19,7cm) 4″: 7 3/8″ (18, 5 cm); 6″: 9 5/8″ (24,5 cm); 12″: 16 7/8″ (42,9 cm)
Note: Pop-up height measured from the cover to the nozzle. Overall body height is measured popped down

Optional PRS Feature
• Maintenance-free design can be easily retrofitted into existing 5000/5000 In-stem pressure regulator (PRS) reduces operating pressure to 45 psi (3,1 bar) for optimal nozzle performance
• Plus, T-Bird™ and Hunter® PGP™ (using UPG model) rotor cases without digging up the entire body
• Pressure: 25-75 psi (1,7 to 5,2 bar)
• PRS saves water by eliminating misting due to high pressure and improving nozzle distribution uniformity by operating the nozzle at optimum pressure

Warranty period: 5 years
