Description

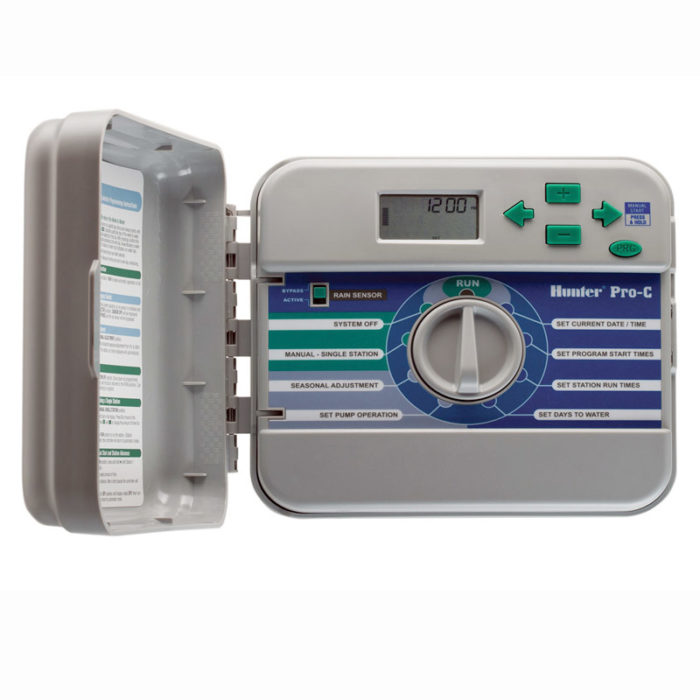

The Hunter Pro-C Outdoor Controller, Packed with the Most Advanced Features in Residential Control.
The modular design of the Hunter Pro-C Outdoor Controller offers the flexibility to change the number of station outputs (from 3 to 15) at any time. No need to bring along a variety of different-sized controllers to see which one is best for the job. With its ability to customize to the particular size you need (from 3 to 15 stations), the Pro-C will always be the right choice. A modular system also makes inventory a breeze. There are only three different units to stock (indoor cabinets, outdoor cabinets and station modules). But, modularity isn’t all this controller has to offer, with great features such as three programs with multiple start times, independent day scheduling options, “one touch” manual start and rapid advance, a programmable event day off, robust heavy-duty locking plastic cabinet, and superior surge protection. The Hunter Pro-C Outdoor Controller delivers maximum flexibility for landscapes that require a minimal number of stations.
Brochure
Features
Choice of independent day scheduling options
Days of the week, odd/even, or 31-day interval for maximum flexibility
Global water budget/seasonal adjustment
Easily change run time of all zones from 10% to 150%
Large LCD display for simplified programming
Easy to read for schedule review and entry
Non-volatile memory
Holds programs indefinitely; excellent insurance against unreliable power
Remote control ready
Supplied with connection for SRR and ICR remote controls
Superior surge protection and self-diagnostic short circuit protection
Microcircuits are protected from electrical spikes, no fuses to worry about
Three programs (A ,B, C) with multiple start times
Independent programming handles many different watering requirements
Versatile modular design
Simplified inventory management; easily customize unit to desired number of stations U.S. Patent #’s 6,840,460 & 6,842,667
• Enclosures: indoor and outdoor plastic
• Independent programs: 3
• Maximum station run time: 6 hrs.
• Number of stations: 3 to 15
• One touch manual start and advance
• Programmable rain delay
• Rain sensor bypass
• Start times per program: 4
• Warranty period; 2 years
Specifications
• Operating temperature: 0° F to 140° F
• P/MV output (24 VAC): 0.28 A
• Sensor inputs: 1
• Station output (24 VAC): 0.56 A
• Transformer input: 120 VAC or 230 VAC (international mode)
• Transformer output (24 VAC): 1 A
• Depth: 4 1/2″
• Height: 9″
• Width: 10″
