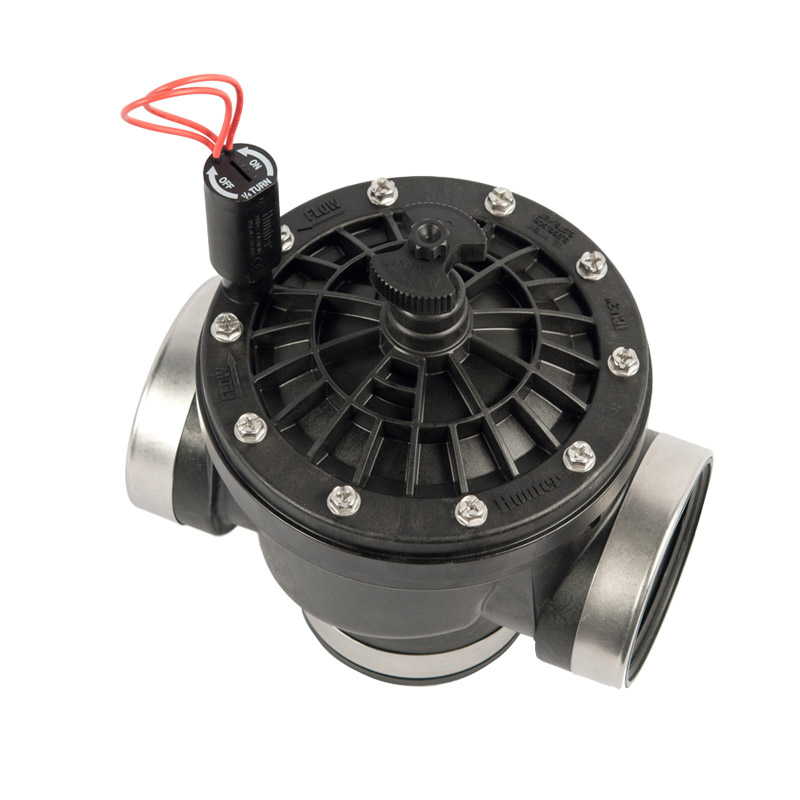

Hunter ICV Series-3 ” Valve

$496.00 $268.75

SKU: HUICV301 Categories: , ,

Description

Hunter ICV Series-3″ Valve, For Institutional & Commercial High-Pressure Systems

The Hunter ICV Series-3″ Valve (Model ICV-301-G) is a top-of-the-line valve you can count on for superior durability and ability to handle exceptionally high pressures. For a long-lasting valve that can deliver dependable performance at commercial sites, this is the heavy-duty workhorse you can count on.

Created to handle the wide range of conditions different sites will bring, this valve includes both a fabric reinforced diaphragm and flow control as standard features, and can consistently withstand pressures of up to 220 PSI while handling the continual hammer that such forces will produce.

The Hunter ICV Series-3″ Valve also offers the added option of the Accu-Sync pressure regulator to maintain a safe, constant water pressure level. Plus, it’s exceptionally easy to service, with bonnet fasteners that can be loosened and tightened using a variety of common contractor tools.

Valve-with-Accu-Sync

Accu-Sync is designed to avoid sprinkler over-pressure condition. You will experience significant water savings with Hunter’s Accu-Sync pressure regulator. Accu-Sync is a simple pressure regulator designed for all of Hunter’s control valves.

The adjustable model enables the zone pressure to be set anywhere between 20 and 100 PSI, while fixed models remove the guesswork and can be installed throughout any system easily. No matter which model you choose, all zones stay in tune with Accu-Sync. This option is available in adjustable pressure or fixed pressure models.

• Glass-filled nylon construction
– 220 PSI rated for maximum strength and sturdiness

• Internal manual bleed
– Keeps valve box dry

•  Captive solenoid plunger
–
No more lost parts when servicing

• Captive bonnet bolts with matching brass body inserts
Provide ease of service, eliminate lost parts

•  Fabric reinforced diaphragm
Provides reliable operation up to 220 PSI

• Optional reclaimed water identification handle
For field identification of non-potable water supply

• Optional Accu-Set pressure regulator
–
Maintains a safe, constant water pressure level

Flow Control
Filter Sentry™
Reclaimed Water Identification
Accu-Sync™ Pressure Regulation

ICV Pressure Loss in PSI
Flow GPM 1″ Globe 1½” Globe 2″ Globe 3″
Globe Angle
0.1 2.0
0.5 2.0
1 2.0
5 2.5
10 3.0
15 3.0
20 3.0 1.5
30 9.0 1.5
40 20.0 1.7 0.8
50 2.2 1.2
60 3.0 1.7
75 3.9 2.4
90 5.5 3.2
100 7.0 4.2
120 10.9 6.5
135 12.7 7.9
150 16.2 9.8 2.5 1.9
175 13.3 3.0 2.4
200 17.7 4.1 3.3
225 5.3 4.3
250 6.7 5.5
275 8.3 6.9
300 10.1 8.5



Dimensions
• Inlet diameter: 3″
• Height: 9 1/4″
• Length: 10 3/4″
• Width: 7 3/8″

Factory Installed Options
• DC latching solenoid
• Filter Sentry

Operating Specifications
• Flow rate:
– ICV-101G: 0.1 to 40 GPM
– ICV-151G: 20 to 135 GPM
– ICV-201G: 40 to 150 GPM
– ICV-301: 150 to 300 GPM
Recommended pressure range: 20 to 220 PSI

Solenoid Specifications

• 24 VAC solenoid
– 350 mA inrush, 190 mA holding, 60 HZ
– 370 mA inrush, 210 mA holding, 50 HZ

User Installed Options
• Accu-Sync pressure regulator
• DC latching solenoid (P/N 458200)
• Reclaimed water ID handle for ICV101, 151, 201 (P/N 561205) and 301 (P/N 515005)
• Reclaimed water ID Tag for all ICV valves (P/N 700392) (Included on Filter Sentry Models)
• Solenoid conduit cover (P/N 464322)

Brochure

Warranty period: 5 years

Additional information

Weight 7.4554 lbs
