Hunter ICV Series-1 1/2″ Valve, For Institutional & Commercial High-Pressure Systems

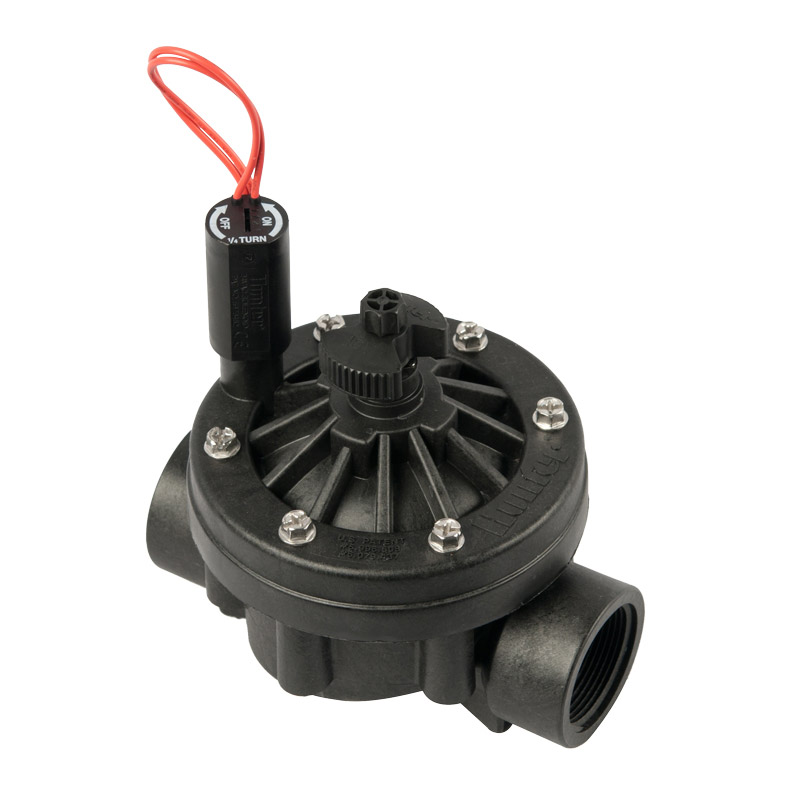

The Hunter ICV Series-1 1/2″ Valve (Model ICV-151-G) is the top of the Line Valve for High-Pressure Commercial Systems. The commercial-grade ICV was built to work seamlessly with the most demanding systems. It boasts an array of reliable features like a fabric reinforced EPDM diaphragm and seat, and flow control. It can consistently operate at up to 220 PSI, and will continue working through difficult circumstances like high velocities, fluctuating flow rates, and challenging water conditions. In addition to its unmatched reliability, the ICV is also exceptionally easy to maintain.
The Hunter ICV Series-1 1/2 Valve bonnet fasteners can be loosened and tightened using a variety of common contractor tools. The Hunter ICV Series-1 1/2″ inch Valve also offers the added option of the Accu-Sync pressure regulator to maintain a safe, constant water pressure level. A Filter Sentry option is also available for applications that involve dirty water.
The Filter Sentry system keeps the valve free of debris found in reclaimed water or ponds. For the ultimate reliability in high pressure situations, the ICV is clearly the professional’s ultimate choice.

Valve-with-Accu-Sync

Accu-Sync is designed to avoid sprinkler over-pressure condition. You will experience significant water savings with Hunter’s Accu-Sync pressure regulator. Accu-Sync is a simple pressure regulator designed for all of Hunter’s control valves.

The adjustable model enables the zone pressure to be set anywhere between 20 and 100 PSI, while fixed models remove the guesswork and can be installed throughout any system easily. No matter which model you choose, all zones stay in tune with Accu-Sync.

This option is available in adjustable pressure or fixed pressure models.

• Glass-filled nylon construction
– 220 PSI rated for maximum strength and sturdiness

• Internal manual bleed
– Keeps valve box dry

•  Captive solenoid plunger
–  No more lost parts when servicing

• Captive bonnet bolts with matching brass body inserts
– Provide ease of service, eliminate lost parts

•  Fabric reinforced diaphragm
– Provides reliable operation up to 220 PSI

• Optional reclaimed water identification handle
– For field identification of non-potable water supply

• Optional Accu-Set pressure regulator
–  Maintains a safe, constant water pressure level

• Flow Control
• Filter Sentry™
• Reclaimed Water Identification
• Accu-Sync™ Pressure Regulation

ICV Pressure Loss in PSI
Flow GPM 1″ Globe 1½” Globe 2″ Globe 3″
Globe Angle
0.1 2.0
0.5 2.0
1 2.0
5 2.5
10 3.0
15 3.0
20 3.0 1.5
30 9.0 1.5
40 20.0 1.7 0.8
50 2.2 1.2
60 3.0 1.7
75 3.9 2.4
90 5.5 3.2
100 7.0 4.2
120 10.9 6.5
135 12.7 7.9
150 16.2 9.8 2.5 1.9
175 13.3 3.0 2.4
200 17.7 4.1 3.3
225 5.3 4.3
250 6.7 5.5
275 8.3 6.9
300 10.1 8.5



Dimensions
• Inlet diameter: 1 1/2″
• Height: 6 7/8″
• Length: 7 1/8″
• Width: 5 1/2″

Factory Installed Options
• DC latching solenoid
• Filter Sentry

Operating Specifications
• Flow rate:
– ICV-101G: 0.1 to 40 GPM
– ICV-151G: 20 to 135 GPM
–  ICV-201G: 40 to 150 GPM
– ICV-301: 150 to 300 GPM
Recommended pressure range: 20 to 220 PSI

Solenoid Specifications
• 24 VAC solenoid
– 350 mA inrush, 190 mA holding, 60 HZ
– 370 mA inrush, 210 mA holding, 50 HZ

User Installed Options
• Accu-Sync pressure regulator|
• DC latching solenoid (P/N 458200)
• Reclaimed water ID handle for ICV101, 151, 201 (P/N 561205) and 301 (P/N 515005)
• Reclaimed water ID Tag for all ICV valves (P/N 700392) (Included on Filter Sentry Models)
• Solenoid conduit cover (P/N 464322)

• Brochure

Warranty Period: 5 Years
