Customized products may take 2 – 4 weeks for delivery
Sale!
FX Luminaire QB LED Up Light
$87.14 – $111.16
Available on backorder
Description

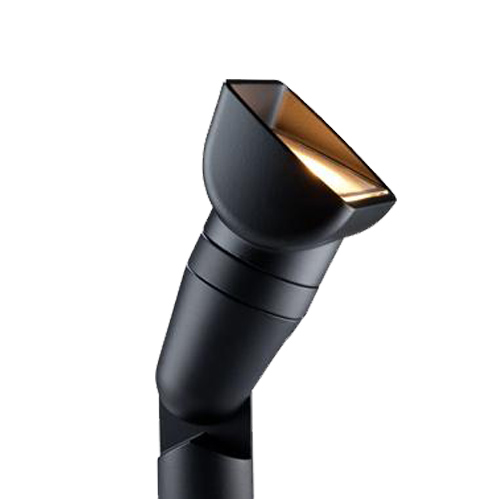

FX Luminaire QB LED Up Light
FX Luminaire QB LED Up Light is a 1LED light with all the same features of the larger PB, and is compatible with Luxor.
Utilizing accent lights in a landscape lighting system design can add texture, contrast, and interest. FX Luminaire provides highly efficient LED accent lights for virtually any outdoor application.
| • Die-cast aluminum or brass | • Input voltage: 10-15V |
| • Color temperature filters | • Natural brass and antique finishes |
| • Compatible with Luxor® technology | • Phase and PWM dimmable |
| • Cree® Integrated LEDs | • ProAim™ adjustability |
Additional information
| Weight | 1.5 lbs |
|---|---|
| Zoning & Dimming Option | |
| Lamp | |
| Finish Options | Add $ Almond, Add $ Flat White, Add $ Silver, Add $ White Gloss, BZ-Bronze Metallic, DG-Desert Granite, FB-Flat Black, SB-Sedona Brown, WI-Weathered Iron |
QB Details
| Metal Finish Options | |||||||||||||||||
|
|||||||||||||||||
| QB: Includes fixture, specified LED board, spike, and filters. | ||||||||||||||||
|
|
|||||||||||||||
![](https://www.fxl.com/sites/fxl.com/files/styles/large/public/mtab_qb_0.png?itok=_xKJYKi1%22")
| QB Ordering Information | ||
| Factory Installed Options: Order 1 + 2 (optional) + 3 + 4 | ||
| Step | Description | Code |
| 1 | Fixture Code | QB |
| 2 | Optional ZD | ZD (zoning and dimming capability using ZD Technology™ with the Luxor controller) |
| 3 | Lamp | • 1LED (50,000 avg. life hours) |
| 5 | Finish | WG, FW, AL, BZ, DG, WI, SB, FB |
| Example: QB-ZD-1LED-BZ = QB – ZD Option – 1 LED Board – Bronze Metallic | ||
QB Spec Chart
| QB Spec Chart | |
| Number of LEDs | 1 |
| Halogen Lumen | 10 Watt |
| Output Equivalent ( Useful LED Life (L70) |
50,000 hrs. average |
| Input Voltage | 10 to 15 V |
| VA Total (use this number to size the transformer) |
2.4 |
| Watts Used | 2 |
| Lumens per Watt (Efficacy) | 37 |
| Max Lumens | 73 |
| CRI (Ra) | 85 |
QB Dimensions
| QB Dimensions |
 |
QB Photometrics
| QB Photometrics |
 |
