Sale!LNK-WiFi for ESPTM24

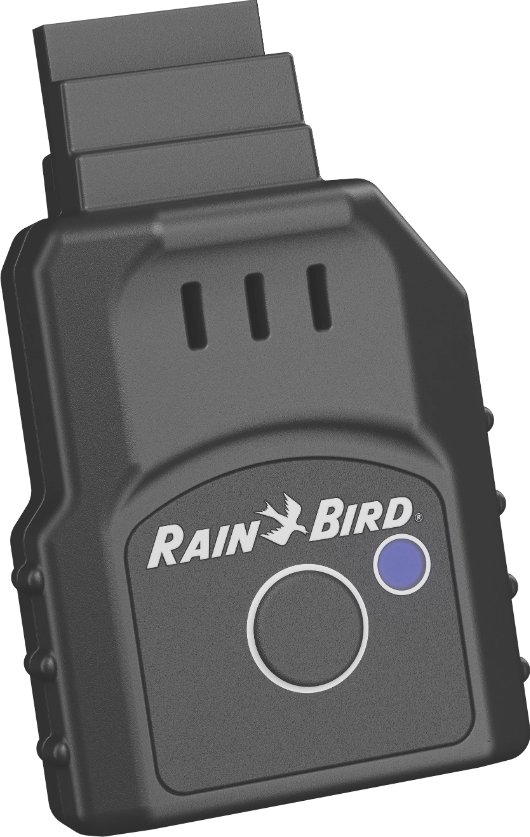

Rain Bird LNK WiFi Module

$130.00 $69.00

In Stock

Rain Bird now offers the LNK WiFi Module for Residential and Light Commercial Rain Bird controllers.The New Rain Bird LNK WiFi Module allows easy access and control of a Rain Bird irrigation system from anywhere in the world. With the LNK WiFi Module and Rain Bird’s FREE mobile app, users get access to off-site management, real-time alerts and advanced water management tools via their smart phone or table.

Learn more about the LNK WiFi Module.



Manuals & Literature

  1. LNK Wifi Tech Specs
  2. LNK Wifi Sell Sheet
  3. LNK Wifi Right Choice Brochure
  4. LNK WiFi Quick Start Guide

Simple Plug & Play Design

  1. Designed to work with controllers you already understand and install
  2. To upgrade existing controllers, simply plug the LNK WiFi Module into the accessory port and open the app
  3. Operates like a remote onsite and provides complete access to the irrigation system while offsite

Advanced App Design

  1. Simple to use app, provides homeowners with the access they need and desire
  2. Professional features allow for easy multi-site management for contractors
  3. Built-in notifications provide troubleshooting access, simplifies service calls, and warns when freezing conditions are expected

Saves Water

  1. Automatic weather adjustments provide daily run time changes to save up to 30% more water
  2. Superior programming capabilities are designed to meet the most stringent water restrictions Instant access allows for real-time system management

Simple Multi-Site Management

  1. Designed for contractors who manage multiple controllers and sites
  2. Quickly group controllers by geography, sub-division, street or another process your company uses Increases technician efficiency and simplifies service calls and/ or winterizations
Models
LNK WiFi Module
Compatible Controllers
ESP-TM2 ESP-Me

Supported Mobile Devices

  1. Apple devices running iOS 8.0 or greater;
  2. Android devices running OS 4.4 (KitKat) or later

Wireless Frequency Bands Supported

  1. 2.4 GHz only

Wireless Networks Supported

  1. 802.11 b/g/n only

Wifi Security Modes Supported

  1. None, Open, WEP, WPA-TKIP, WPA-AES, WPA2-TKIP, WPA2-AES, WPA2-AES-TKIP

Communication Modes Supported

  1. Communication with module via module Access Point (hotspot)
  2. Communication with module via local area network; Communication with module via Rain Bird relay server

Operating Specifications

  1. Operating Temperature: 14° F (-10° C) to 149°F (65°C)
  2. Storage Temperature: -40°F (-40°C) to 150°F (66°C)
  3. Operating Humidity: 95% max @ 50°F to 120°F (10°C to 49°C) non-condensing environment

Electrical Specifications

  1. 24VAC(RMS) 50/60Hz; 55mA max

Certifications

  1. UL, cUL, CE, CSA, FCC Part 15b, WEEE, S-Mark, IP30, IFETEL

Dimensions

  1. Width: 1.13 in.
  2. Height: 1.83 in.
  3. Depth: 0.48 in.
Weight0.5lbs
