Description

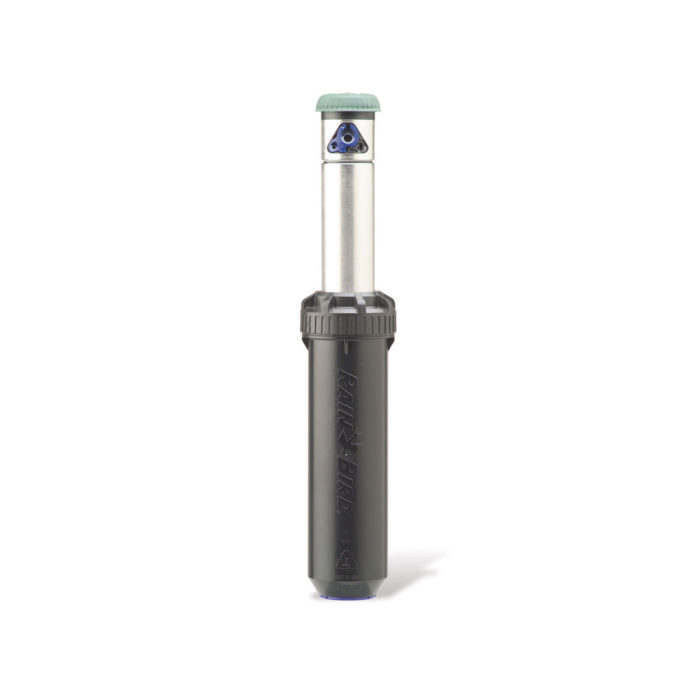

Rain Bird 8005-SS, (Stainless Steel Riser) Part/Full Circle, Less Nozzle

The Rain Bird 8005-SS Rotor is built rugged to withstand the harsh conditions and vandalism present in commercial rotor applications. It has been designed and tested to ensure the high reliability demanded by the market today.

The Rain Bird 8005-SS is versatile enough to fit all applications. With its extensive customer identified features, and 80 foot radius, it is ideal for watering sports fields, parks and other large turf applications. A stainless steel riser helps to deter vandalism on public turf areas. The nozzles are interchangeable from the front with no special tools.

• Memory Arc® returns the rotor to its original arc setting.
• Non-strippable drive mechanism prevents damage from vandals.
• Brass reinforcing shaft of the nozzle turret to riser withstands vandal kick.
• Optional stainless steel riser model helps deter vandalism on public turf areas.
• Full- and part-circle operation in one unit to reduce inventory requirements.
• Easy, wet, dry arc adjustment with slotted screwdriver through top of rotor from 50° to 330° part-circle, 360° non-reversing full-circle.
• Left and right side trips adjustable for ease of installation without turning the case and loosening the pipe connection.
• Seal-A-Matic™ (SAM) check device/riser to help prevent low head drainage.
• Water-lubricated gear drive.
• Rain Curtain™ nozzles for optimal distribution and close-in watering resulting in superior uniformity.
• Nozzles are interchangeable from the front with no special tools.
• Self-adjusting turbine stator allows nozzle replacement with no other adjustments required.
• Heavy duty retract spring ensures positive pop-down.
• Standard rubber cap. (Green)
• Optional Purple rubber cover for non-potable applications.

• Radius: 39 to 81 feet (11.9 to 24.7 m)
• Precipitation rate: 0.48 to 1.23 inches per hour (12 to 31 mm/h)
• Pressure: 50 to 100 psi (3.5 to 6.9 bar)
• Flow: 3.8 to 36.3 gpm (0.86 to 8.24 m3/h; 14.4 to 137.4 l/m)
• 1″ (26/34) NPT or BSP female threaded inlet.
• SAM check device holds up to 10 feet (3.1 m) of head.
• Nozzle outlet trajectory is 25º.

Rain Curtain™ Nozzles
04 – black
06 – light blue
08 – dark green
10 – gray
12 – beige
14 – light green
16 – dark brown
18 – dark blue
20 – red
22 – yellow
24 – orange
26 – white

• Rain Curtain Cross Reference Guide
• Rain Curtain Nozzle Technology Details

Dimensions
• Exposed diameter: 1 7/8″ (4,8 cm)
• Overall diameter: 3 1/8″ (7,9 cm)
• Overall height: 10 1/8″ (25,7 cm)
• Pop-up height: 5″ (12,7 cm)

• Brochure
• Details
• Performance Data

Warranty period: 5 years
