MR-16 LED Drop-In Lamp


Out of stock

SKU: 10642 Category:


MR-16 LED Drop-In Lamp

The MR-16 LED is a convenient high-quality lamp. The MR-16 LED is available in two intensities, four beam angle options, and two color temperatures. Fully potted, it carries a five-year warranty.

Please Allow 6-9 business days for shipping
No returns on lighting products

Base: GU5.3
Beam Angle: 4
Total Lumens: 260 – 370
Lamp: MR-16

• MR-16 Spec SheetFX Luminaire – Warranty


MR-16 Spec Chart

  Base   GU5.3
  Housing   Die-Cast Zinc
  Input Voltage   10 to 15V
  Lamp Life   40,000 hrs.
  Color Temperature (CCT)   2,700K and 3,900K
  Beam Angles
 10° – Very Narrow Flood
 25° – Narrow Flood
 35° – Flood
 60° – Wide Flood
  Compliance   UL, cUL, FCC, and RoHS
  Warranty   5 Year limited

Additional information

Weight N/A
Beam Angle

, , ,


, , ,




MR-16 Model Configuration

Factor Installed Options: Order 1 + 2 + 3

Step   Description   Code
1   Model   MR-16 LED
2   Halogen Equivalent
  20 (20W) Consumes 4W
  35 (35W) Consumes 5W
3   Color Temperature
  W Warm (2700K)
  C Cool (3900K)
4   Beam Angle
  VN Very Narrow (10°)
  NF Narrow Flow (25°)
  FL Flood (35°)
  WF Wide Flood (60°)
  EXAMPLE: MR16 LED-20-W-Warm (2700K) – Very Narrow (10°)


Field Installed Options: Order Individually

  Model   Description
  250015260000   Hex Baffle
  RRMR16   Recessor Ring
  250015170000   Frosted Lens
  250013550000   Spread Lens
  250015240000   Solite Spread Lens


MR-16 20W Photometrics

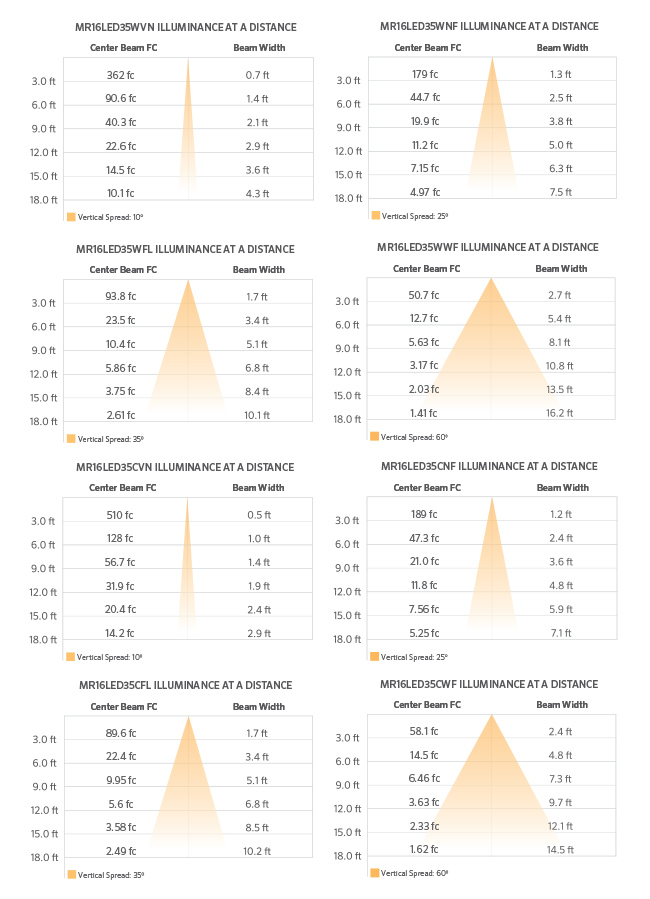

MR-16 35W Photometrics
