Description

The Hunter ICV Series-1 inch Valve is the top-of-the-line valve you can count on for superior durability and ability to handle exceptionally high pressures.

For a long-lasting valve that can deliver dependable performance at commercial sites, this is the heavy-duty workhorse you can count on.

Created to handle the wide range of conditions different sites will bring, this valve includes both a fabric reinforced diaphragm and flow control as standard features, and can consistently withstand pressures of up to 220 PSI while handling the continual hammer that such forces will produce. The Hunter ICV Series-1 inch valve also offers the added option of the Accu-Sync pressure regulator to maintain a safe, constant water pressure level. Plus, it’s exceptionally easy to service, with bonnet fasteners that can be loosened and tightened using a variety of common contractor tools.

Accu-Sync is designed to avoid sprinkler over-pressure condition. You will experience significant water savings with Hunter’s Accu-Sync pressure regulator. Accu-Sync is a simple pressure regulator designed for all of Hunter™ control valves. The adjustable model enables the zone pressure to be set anywhere between 20 and 100 PSI, while fixed models remove the guesswork and can be installed throughout any system easily. No matter which model you choose, all zones stay in tune with Accu-Sync.This option is available in adjustable pressure or fixed pressure models.



[accordion]
[toggle title=”Details” state=”closed”]• Height:
 5½”
• Length: 4¾”
• Width: 4″
• 0.1 to 40 GPM
• Recommended pressure range: 20 to 220 PSI
• Solenoid Specifications
• 24 VAC solenoid
• 350 mA inrush, 190 mA holding, 60 HZ
• 370 mA inrush, 210 mA holding, 50 HZ

Factory Installed Options
• DC latching solenoid
• Filter Sentry

User Installed Options

• Solenoid conduit cover (P/N 464322)
• DC latching solenoid (P/N 458200)
• Accu-Sync pressure regulator
• Reclaimed water ID handle for ICV101, 151, 201 (P/N 561205) and 301 (P/N 515005)
• Reclaimed water ID Tag for all ICV valves (P/N 700392) (Included on Filter Sentry Models)

[/toggle]
[/accordion]

[accordion]
[toggle title=”Accu-Sync” state=”closed”]

Valve-with-Accu-Sync

Accu-Sync is designed to avoid sprinkler over-pressure condition. You will experience significant water savings with Hunter’s Accu-Sync pressure regulator. Accu-Sync is a simple pressure regulator designed for all of Hunter’s control valves. The adjustable model enables the zone pressure to be set anywhere between 20 and 100 PSI, while fixed models remove the guesswork and can be installed throughout any system easily. No matter which model you choose, all zones stay in tune with Accu-Sync.This option is available in adjustable pressure or fixed pressure models.



[/toggle]
[/accordion]

Accu-Sync Brochure
Accu-Sync Spec Sheet
• Hunter Warranty

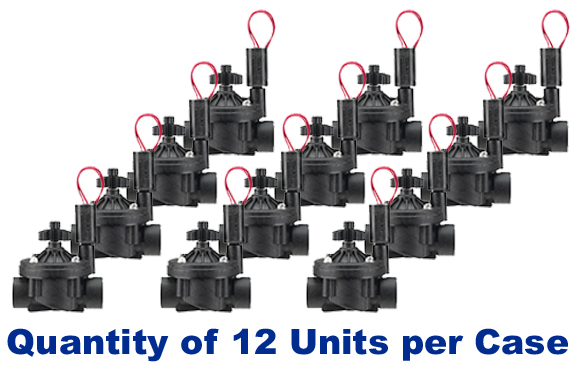

Case Pricing (Quantity of 12 Units Per Case)

• List Price –  $1440.00
• Sale Price – $595.80
