Description

Hunter Remote Controller-ROAM-XL KIT, A long-range controller

The  Hunter Remote Controller-ROAM-XL KIT is designed for contractors working with large sites. If your responsible for irrigation of school grounds, commercial/ industrial and corporate complexes, and home subdivisions, you require high-powered remote that can cover long distances. The Hunter Remote Controller-ROAM-XL KIT is powerful, with a simple user interface that features 128 different programmable addresses. The Roam XL eliminates the need to walk to the controller to start or stop a cycle during maintenance, installation or winterization. The kit includes the Transmitter, Receiver, and Carrying Case.

• 128 programmable addresses for use with multiple Roam remotes in the same neighborhood
• Designed to work with Hunter X-Core, Pro-C, PCC, I-Core, and ACC controllers through a SmartPort® connection
• Display shows remaining battery life
• Large LCD display
• Programmable run times: 1 to 90 minutes
• Push button operation
• Receiver power source: 24 VAC, 10 mA (provided by controller)
• Run manual watering cycles without modifying regular program
• Variable run times to adjust run time without modifying regular program

Included in Kit
• 4 AAA batteries
• Rugged plastic carrying case included
• SmartPort wiring harness
• Transmitter, receiver

• FCC approved: No FCC license required
• Range: Up to 2 miles for remote manual operation of Hunter  irrigation systems
• Receiver power source: 24 VAC, from controller through a SmartPort connector
• SmartPort connector can be mounted up to 50′ (max.) from controller (use ROAM-SCWH shielded cable wiring harness) • System operating frequency: 433 MHz band
• System operating frequency: 27 MHz band
• Transmitter power source: 4 AAA batteries (included)

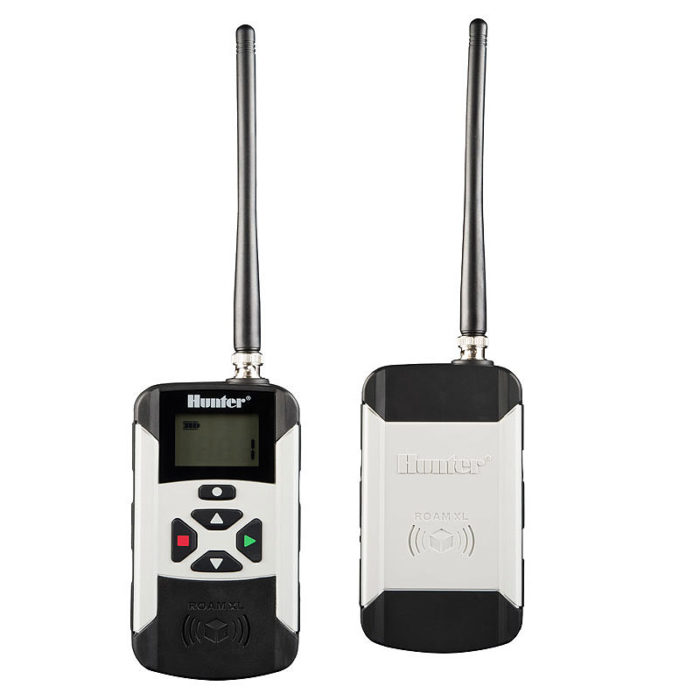

Transmitter and Receiver
• Depth: 1 1/4″
• Height: 6 1/4″
• Width: 3″

Brochure

Warranty period: 2 years
