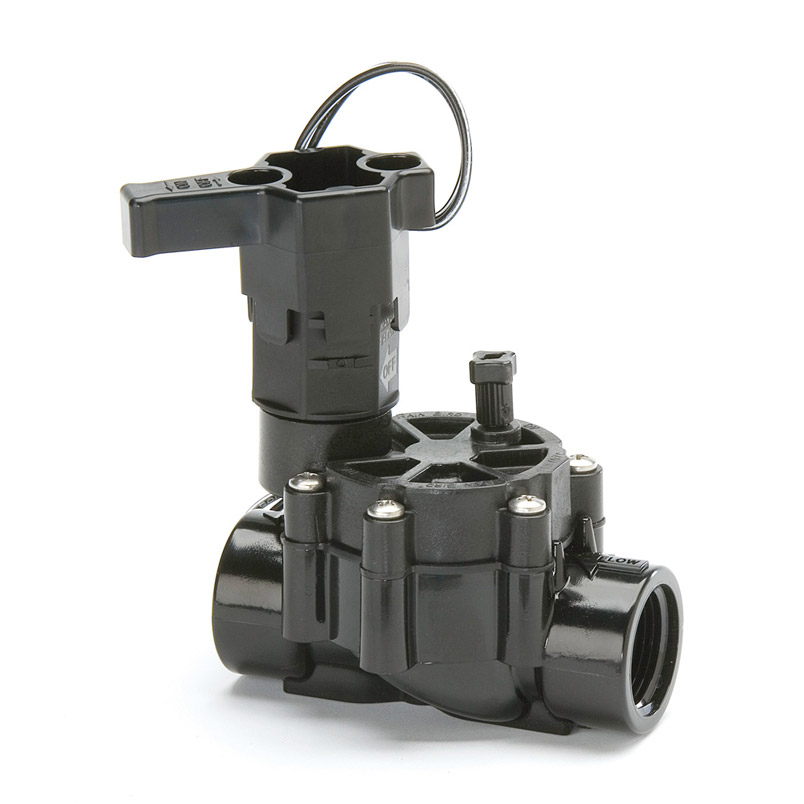

Sale!Rain Bird DV Series-1 inch Electrical Valve

Rain Bird DV Series-1 inch Electrical Valve

$25.00 $12.48

In Stock

SKU: RBDV100

Rain Bird DV Series-1 inch Electrical Valve, Remote Control, 24VAC, F x F

The Rain Bird DV Series-1 inch Electrical Valve, (Model 100-DV), can be used in locations where the use of a separate pressure vacuum breaker (PVB) or a double-check valve is required by city codes to protect against back flow. Check your local city codes to determine what type of valves are required. It accepts a latching solenoid for use with Rain Bird battery-operated controllers. All of our valves work with any standard sprinkler timer. The Rain Bird DV Series-1 inch Electrical Valve operates in low-flow and Xerigation® applications when the RBY filter is installed upstream. It is energy-efficient, and has a low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter. It also features a unique, easy-to-turn patented pressure assisted flow control mechanism.



DV and DVF Brochure

DV and DVF Manual

DV Series Instruction Manual

DV Performance Data

Rain Bird Warranty



• Accepts latching solenoid for use with Rain Bird battery-operated controllers

• Balanced-pressure diaphragm for long life

• Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring

• Double-filtered pilot-flow design for maximum reliability

• Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter

• External bleed to manually flush system of dirt and debris during installation and system start-up

• Internal bleed for spray-free manual operation

• Operates in low-flow and Xerigation® applications when the RBY filter is installed upstream

• Unique, easy-to-turn patented pressure assisted flow control mechanism (DVF models only)

• Warranty Period: 5 Years



Available as:

– 3/4" (20/27) and 1" (26/34) standard in-line configuration

• 1" (26/34) Slip-by-Slip (SS) configuration for low cost, solvent-weld installations.

• 1" (26/34) Angle (A) configurations for flexible installations especially when submains are deep

• 1" (26/34) Male-by-Male (MM) thread configuration for quick and easy manifolding

• 1" (26/34) Male-by-Barb (MB) male thread inlet by barb outlet configuration for installation with poly pipe

• 1.25" (3,2 cm) stainless steel phillips head screws

• 24 VAC 50/60 Hz (cycles per second) solenoid power requirement:
– 0.30 A (7.2 VA) inrush current; 0.23 A (5.5 VA) holding current

• 075-DV Flow: 0.2 to 22 GPM (0,05 to 5,0 m3/h; 0,01 to 1,39 l/s)
– For flows below 3 GPM (0,75 m3/h; 0,21 l/s) or any Xerigation® application, use a 200 mesh filter installed upstream

• 100-DV Flow): 0.2 to 40 GPM (0,05 to 9,08 m3/h; 0,01 to 2,52 l/s) – For flows below 3 GPM (0,75 m3/h; 0,21 l/s) or any Xerigation® application, use a 200 mesh filter installed upstream

• 100-DVF Flow (non-union): 0.2 to 40 gpm (0,75m3/h; 0,21 l/s); for flows below 3 gpm or any Xerigation application, use a 200 mesh filter installed upstream

• Ambient air temperature: Up to 125° F (52° C)

• Pressure: 15 to 150 psi (1,0 to 10,4 bar)

• Solenoid coil resistance: 38 Ohms

• Temperature: Up to 110° F (43° C)



Dimensions:

• Height: 4 1/2" (11,4 cm)

• Height (Angle): 5 1/2" (14 cm)

• Width: 3 1/3" (8,4 cm)

• Length: 4 3/8" (11,1 cm)

• Length (Angle): 3 3/4" (9,5 cm)

• Length (MM): 5 3/8" (13,6 cm)

• Length (MB): 5 3/4" (14,6 cm)

Weight0.7lbs
